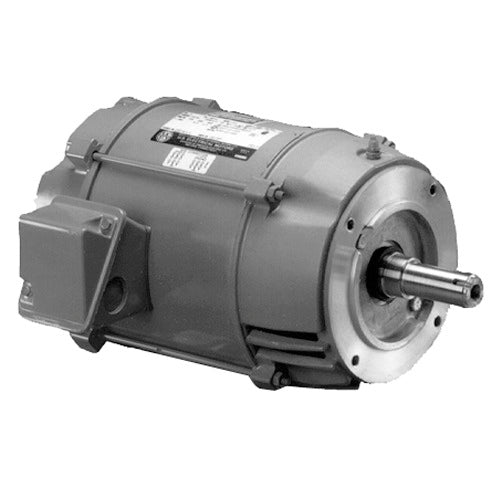

DJ7P2DJ US Motors / Nidec Close Coupled Pump Motor - 7 1/2 HP - 1800 RPM - 208-230/460 V - ODP
DJ7P2DJ US Motors / Nidec Close Coupled Pump Motor - 7 1/2 HP - 1800 RPM - 208-230/460 V - ODP
Regular price
$855.95 USD
Regular price
Sale price
$855.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DJ7P2DJ is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for centrifugal pumps with the pump impeller mounted directly on the motor shaft.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 20.2-18.5/9.3 A |
| Service Factor | 1.15 |
| Insulation Class | F |
| Efficiency | 91 % |
| Speed Count | 1 |
| Frame | 213TCZ |
| Enclosure | ODP |
| Mounting | Close-coupled pump mount |
| Shaft Configuration | TCZ close-coupled pump shaft |
| Rotation | Reversible |
| Bearings | Oversized ball bearings with locked shaft-end construction |
| Material | Rolled Steel |
| C Dimension | 20.81 in |
| Length | 20.81 in |
| Ship Weight | 90 lb |
| Country of Origin | MEX |
