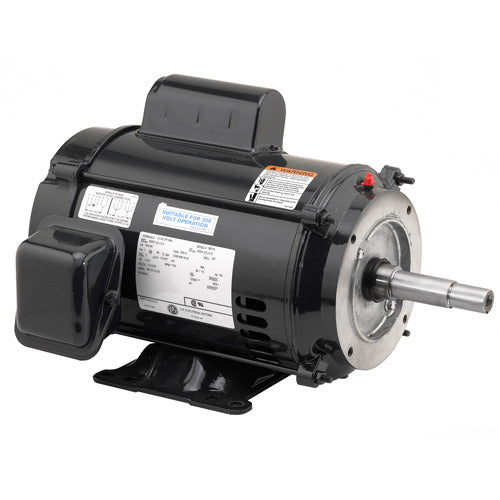

DJ7C2K21M US Motors / Nidec Close Coupled Pump Motor - 7 1/2 HP - 1800 RPM - 230 V - ODP
DJ7C2K21M US Motors / Nidec Close Coupled Pump Motor - 7 1/2 HP - 1800 RPM - 230 V - ODP
Regular price
$1,190.95 USD
Regular price
Sale price
$1,190.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DJ7C2K21M is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for centrifugal pumps with the pump impeller mounted directly on the motor shaft.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 35.6 A |
| Service Factor | 1.15 |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 215JM |
| Enclosure | ODP |
| Mounting | Footed close-coupled pump mount |
| Shaft Configuration | JM shaft for mechanical seal |
| Rotation | Reversible |
| Bearings | Oversized ball bearings with locked shaft-end construction |
| Material | Rolled Steel |
| C Dimension | 22 in |
| Length | 22 in |
| Ship Weight | 110 lb |
| Country of Origin | MEX |
