US Motors / Nidec

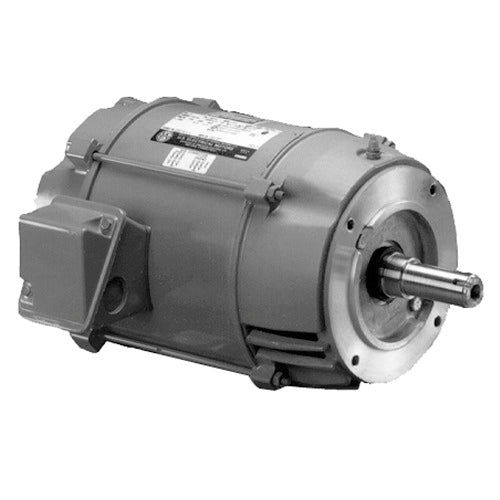

DJ5P2DU US Motors / Nidec Close Coupled Pump Motor - 5 HP - 1755 RPM - 208-230/460 V - ODP
DJ5P2DU US Motors / Nidec Close Coupled Pump Motor - 5 HP - 1755 RPM - 208-230/460 V - ODP
Regular price
$906.95 USD
Regular price
Sale price
$906.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DJ5P2DU is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for centrifugal and close-coupled pump applications.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1755 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 13.7-12.4/6.2 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 89.5 % |
| Speed Count | 1 |
| Frame | 184JM |
| Enclosure | ODP |
| Mounting | JM close-coupled pump mount, footless |
| Shaft Configuration | JM pump shaft for mechanical seal |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Rolled Steel |
| Ship Weight | 82 lb |
| Country of Origin | MEX |
