US Motors / Nidec

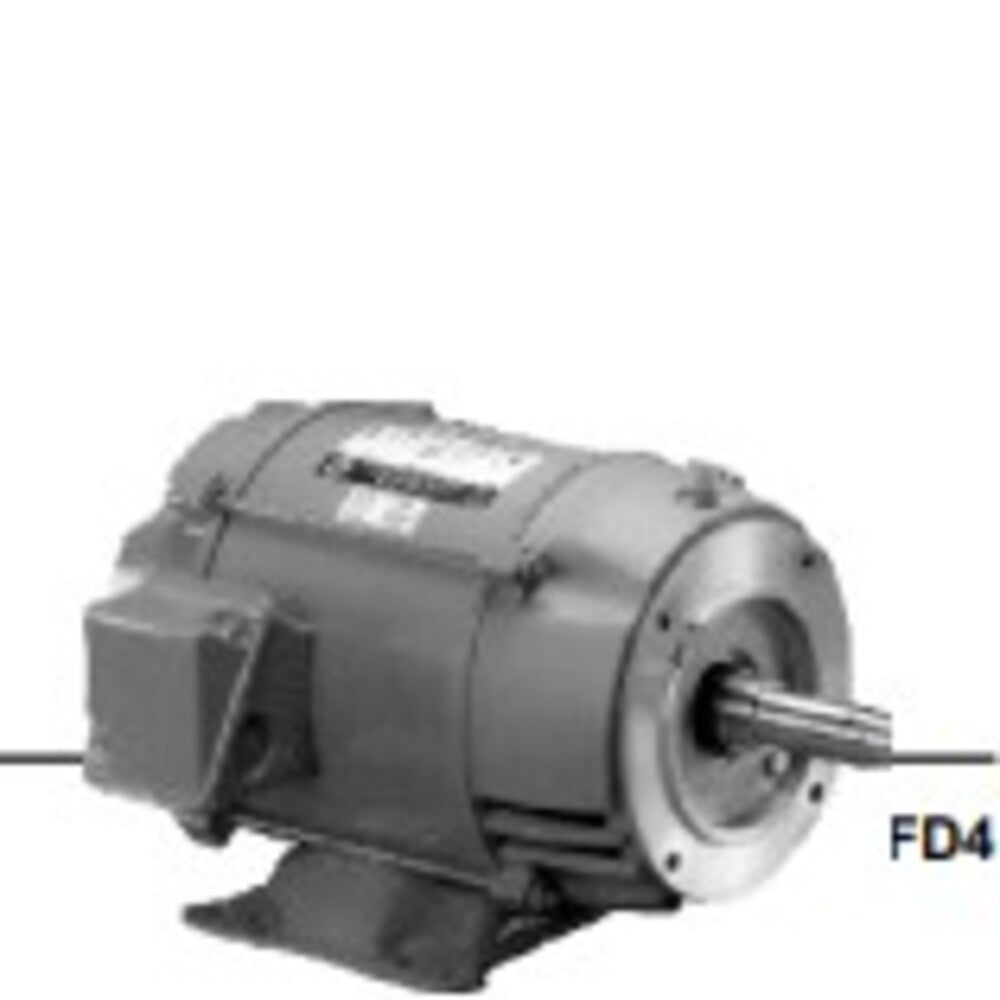

DJ15P2EM US Motors / Nidec Close Coupled Pump Motor - 15 HP - 1775 RPM - 230/460 V - ODP
DJ15P2EM US Motors / Nidec Close Coupled Pump Motor - 15 HP - 1775 RPM - 230/460 V - ODP
Regular price
$1,553.95 USD
Regular price
Sale price
$1,553.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DJ15P2EM is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for centrifugal and close-coupled pump applications.
Specifications
| Horsepower | 15 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1775 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 37.0/18.3 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 93 % |
| Speed Count | 1 |
| Frame | 254JM |
| Enclosure | ODP |
| Mounting | Rigid base, footed; JM close-coupled pump mount |
| Shaft Configuration | JM pump shaft for mechanical seal |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Rolled Steel |
| Ship Weight | 150 lb |
| Country of Origin | MEX |
