US Motors / Nidec

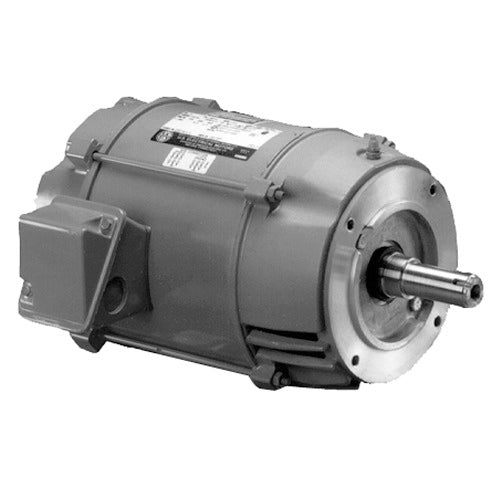

DJ10P2DJ US Motors / Nidec Close Coupled Pump Motor - 10 HP - 1800 RPM - 208-230/460 V - ODP
DJ10P2DJ US Motors / Nidec Close Coupled Pump Motor - 10 HP - 1800 RPM - 208-230/460 V - ODP
Regular price
$1,040.95 USD
Regular price
Sale price
$1,040.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DJ10P2DJ is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for centrifugal pumps with the pump impeller mounted directly on the motor shaft.
Specifications
| Horsepower | 10 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 26.3-23.8/11.9 A |
| Service Factor | 1.15 |
| Insulation Class | F |
| Efficiency | 91.7 % |
| Speed Count | 1 |
| Frame | 215TCZ |
| Enclosure | ODP |
| Mounting | Close-coupled pump mount |
| Shaft Configuration | TCZ close-coupled pump shaft |
| Rotation | Reversible |
| Bearings | Oversized ball bearings with locked shaft-end construction |
| Material | Rolled Steel |
| C Dimension | 22.31 in |
| Length | 22.31 in |
| Ship Weight | 105 lb |
| Country of Origin | MEX |
