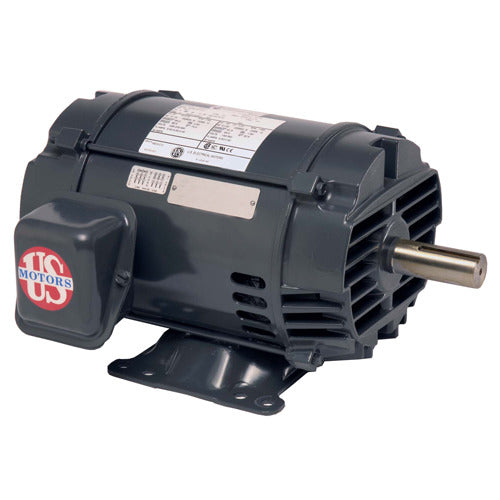

D7P1D US Motors / Nidec NEMA Premium Efficient Motor - 7 1/2 HP - 3495 RPM - 208-230/460 V - ODP
D7P1D US Motors / Nidec NEMA Premium Efficient Motor - 7 1/2 HP - 3495 RPM - 208-230/460 V - ODP
Regular price
$566.95 USD
Regular price
Sale price
$566.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D7P1D is a new-in-box NEMA Premium Efficient Motor from US Motors / Nidec. Designed for general-purpose industrial equipment where contaminants are minimal.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3495 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 20.3-18.1/9.1 A |
| Service Factor | 1.15 |
| Overload Protection | Not available from manufacturer |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 88.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 184T |
| Enclosure | ODP |
| Mounting | Horizontal footed, F1 |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | DE 6206; ODE 6206 |
| Material | Rolled Steel |
| C Dimension | 13.7 in |
| Length | 34 in |
| Width | 28 in |
| Height | 16 in |
| Ship Weight | 60 lb |
| Country of Origin | MEX |
