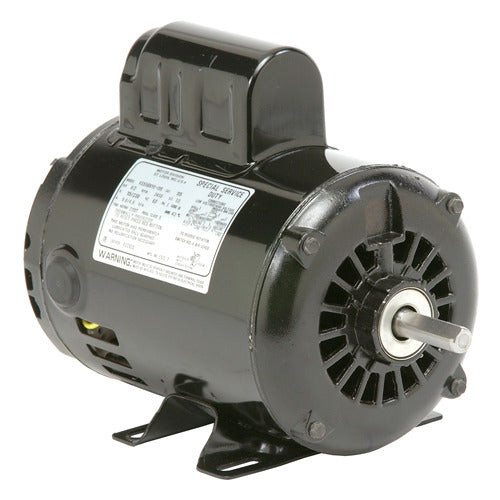

D5CM1K14 US Motors 5 HP 3600 RPM 208-230V Compressor Motor

D5CM1K14 US Motors 5 HP 3600 RPM 208-230V Compressor Motor

Special-application air compressor motor from US Motors / Nidec. Manufacturer specifications are taken from the 2026 US Motors catalog; PEMS data is used only where the catalog is silent.

Identifiers

• Manufacturer MPN: D5CM1K14
• Vendor ordering code: D5CM1K14
• UPC: 786382066055

Specifications

• Horsepower: 5 HP
• Nominal speed: 3600 RPM
• Rated / full-load speed: 3450 RPM
• Voltage: 208-230V
• Phase: Single phase
• Frame: 56HZ
• Enclosure: ODP
• Mounting: Rigid base
• Rotation: CCW facing shaft; non-reversible
• Frequency: 60 Hz
• Full-load amperage: 22.5-22.0 A
• Service factor: 1.00
• Overload protection: Manual reset
• Insulation: Class B
• Hazardous-location rating: Not applicable
• Catalog shipping weight: 43 lb

Fit and application check

Before ordering, compare the motor nameplate and verify horsepower, voltage, phase, frame, mounting, enclosure, rotation and shaft requirements. Installed or used electrical products cannot be returned.

Shipping

This product is vendor drop shipped. Freight is not included in the product price and must be confirmed for the delivery destination before the order is released.
