• D5C2K US Motors / Nidec Air Compressor Motor - 5 HP - 1740 RPM - 230 V - ODP
1 1

US Motors / Nidec

D5C2K US Motors / Nidec Air Compressor Motor - 5 HP - 1740 RPM - 230 V - ODP

D5C2K US Motors / Nidec Air Compressor Motor - 5 HP - 1740 RPM - 230 V - ODP

$593.95 USD
$593.95 USD
Sale Sold out
Shipping calculated at checkout.

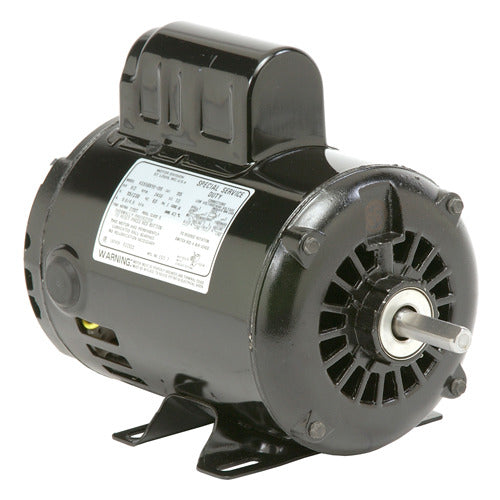

D5C2K is a new-in-box Air Compressor Motor from US Motors / Nidec. Designed for air compressors.

Specifications

Horsepower 5 HP
Nominal RPM 1800 RPM
Rated RPM 1740 RPM
Voltage 230 V
Phase Single Phase
Frequency 60 Hz
Electrical Type Capacitor Start Capacitor Run
Full-Load Amps 23.5 A
Service Factor 1.15
Overload Protection Manual Reset
Ambient Rating 40 °C
Insulation Class F
Speed Count 1
Frame 184T
Enclosure ODP
Mounting Rigid Base
Shaft Details Manufacturer shaft code T
Rotation CCWSE
Bearings 6206-2ZJ/C3 / 6204-2ZJ/C3
Material Rolled Steel
Length 35 in
Width 29 in
Height 18 in
Ship Weight 122 lb
Country of Origin MEX
