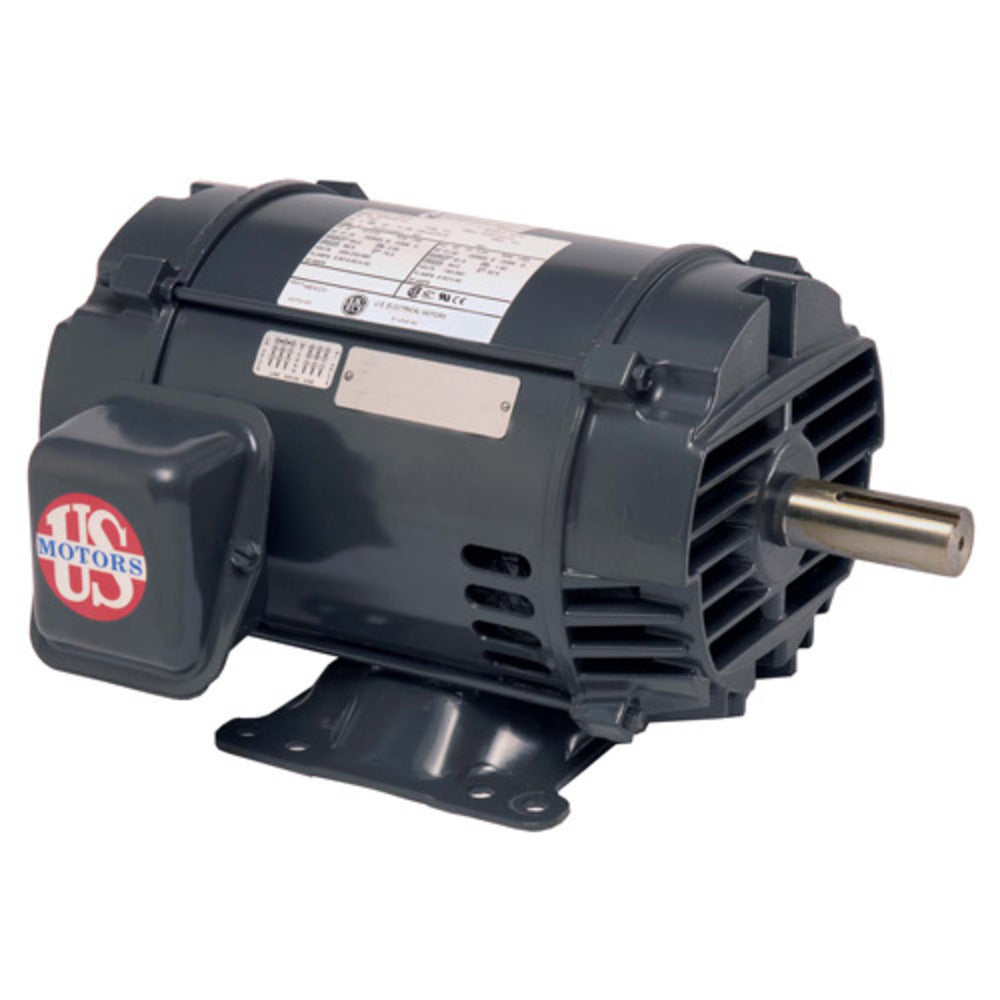

D40P2D US Motors / Nidec General Purpose Motor - 40 HP - 1780 RPM - 230/460 V - ODP
D40P2D US Motors / Nidec General Purpose Motor - 40 HP - 1780 RPM - 230/460 V - ODP
Regular price
$2,297.95 USD
Regular price
Sale price
$2,297.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D40P2D is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for pumps, fans, compressors, material handling and general-purpose applications where contaminants are minimal.
Specifications
| Horsepower | 40 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1780 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 91/46 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 94.1 % |
| Speed Count | 1 |
| Frame | 324T |
| Enclosure | ODP |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | 6311-2Z-J/C3 / 6211-2Z-J/C3 |
| Material | Rolled Steel |
| Length | 42 in |
| Width | 36 in |
| Height | 22 in |
| Ship Weight | 385 lb |
| Country of Origin | MEX |
