US Motors / Nidec

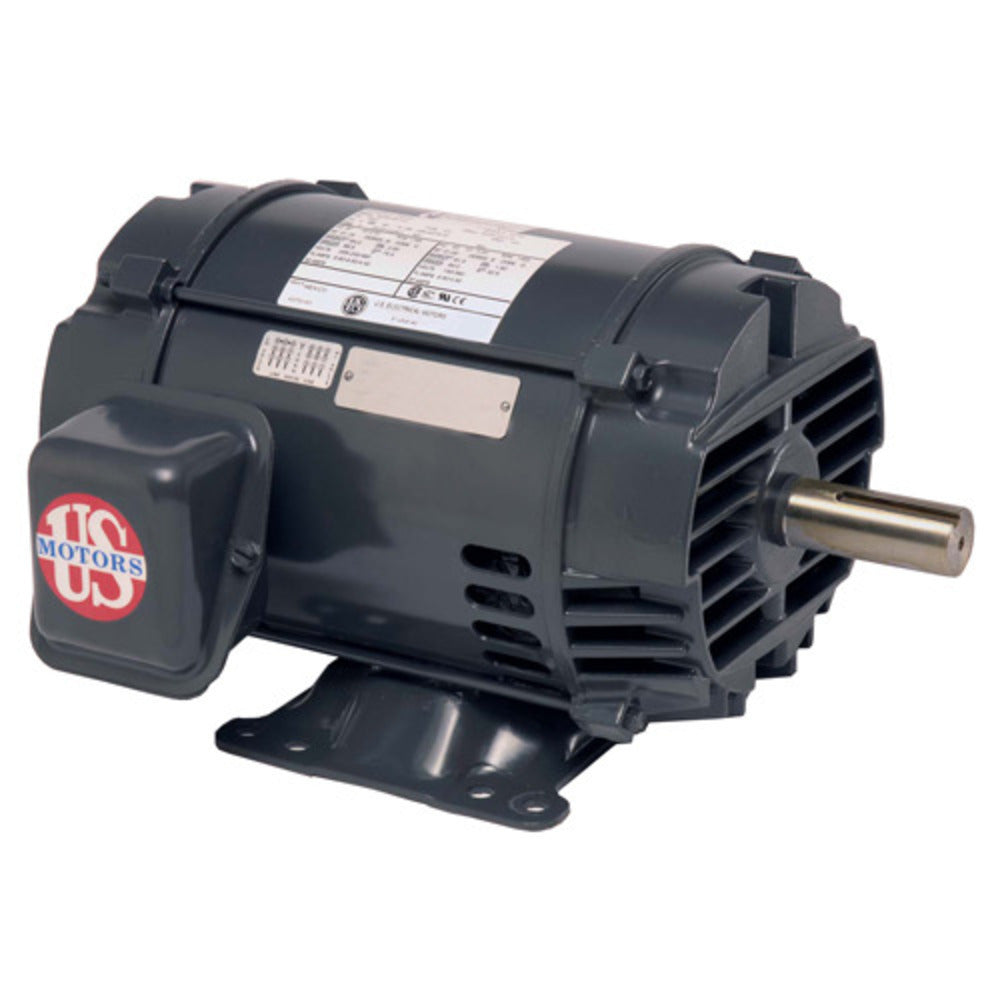

D3P2AHZ US Motors / Nidec General Purpose Motor - 3 HP - 1725 RPM - 208-230/460 V - ODP
D3P2AHZ US Motors / Nidec General Purpose Motor - 3 HP - 1725 RPM - 208-230/460 V - ODP
Regular price
$535.95 USD
Regular price
Sale price
$535.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D3P2AHZ is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial equipment where contaminants are minimal.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 9.7-9.4/4.6 A |
| Service Factor | 1.15 |
| Overload Protection | None |
| Duty Rating | Not listed by manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 86.9 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56HZ |
| Enclosure | ODP |
| Mounting | Horizontal footed, rigid base |
| Shaft Details | Manufacturer shaft code HZ |
| Rotation | Reversible |
| Bearings | Ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 13.5 in |
| Ship Weight | 21.23 lb |
| Country of Origin | MEX |
