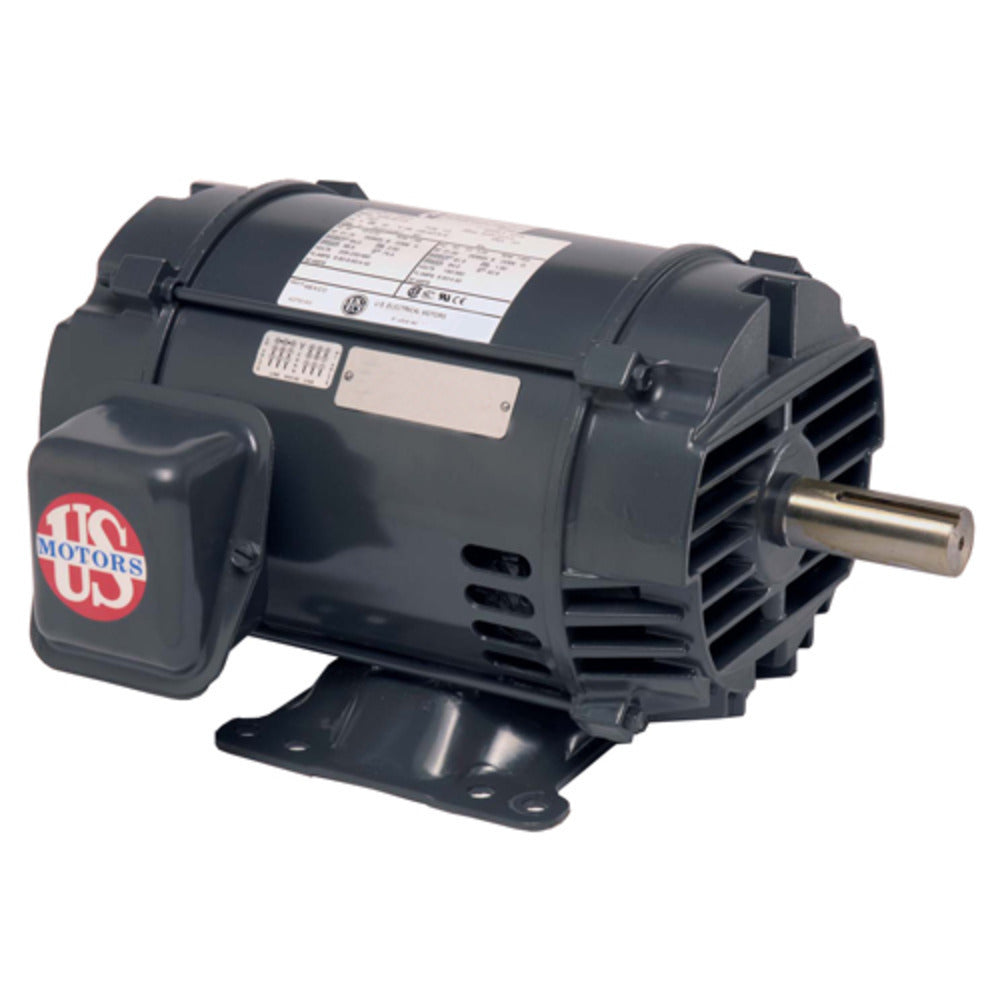

D32P2D US Motors / Nidec General Purpose Motor - 1 1/2 HP - 1750 RPM - 208-230/460 V - ODP
D32P2D US Motors / Nidec General Purpose Motor - 1 1/2 HP - 1750 RPM - 208-230/460 V - ODP
Regular price
$412.95 USD
Regular price
Sale price
$412.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D32P2D is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for pumps, fans, compressors, material handling, and other general-purpose applications where contaminants are minimal.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1750 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 4.4-4.2/2.1 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 86.5 % |
| Speed Count | 1 |
| Frame | 145T |
| Enclosure | ODP |
| Mounting | Rigid base (footed), F1 assembly unless noted |
| Rotation | Reversible |
| Bearings | Double-shielded bearings (140–400 frame); open bearings on 440 frame |
| Material | Rolled Steel |
| C Dimension | 12.8 in |
| Length | 17 in |
| Width | 13 in |
| Height | 10 in |
| Ship Weight | 35 lb |
| Country of Origin | MEX |
