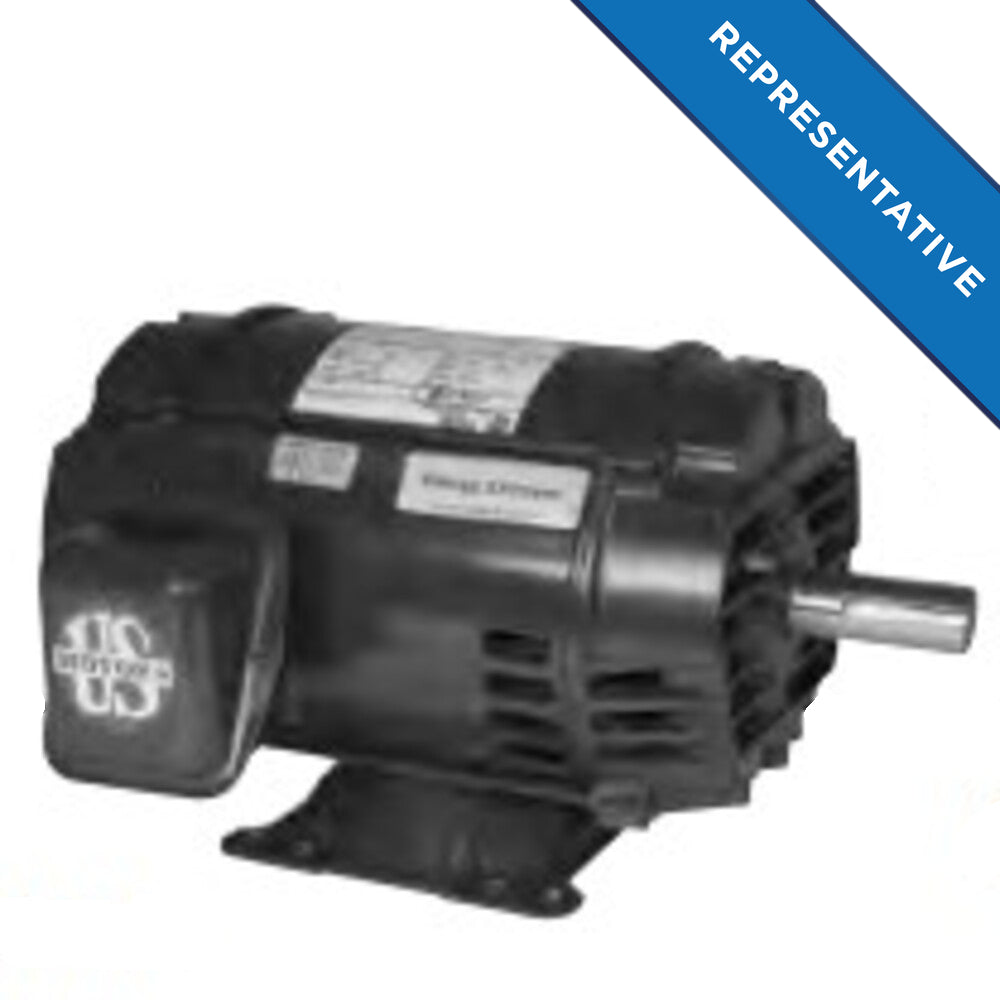

D32P2AH9 US Motors / Nidec General Purpose Motor - 1 1/2 HP - 1725 RPM - 230/460 V - ODP
D32P2AH9 US Motors / Nidec General Purpose Motor - 1 1/2 HP - 1725 RPM - 230/460 V - ODP
Regular price
$556.95 USD
Regular price
Sale price
$556.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D32P2AH9 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for pumps, fans, compressors, material handling and general-purpose applications where contaminants are minimal.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 5.0- 4.8/2.4 A |
| Service Factor | 1.15 |
| Overload Protection | None |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 86.5 % |
| Speed Count | 1 |
| Frame | 56H |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Manufacturer shaft code H |
| Rotation | Reversible |
| Bearings | 6203 / 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 20 lb |
| Country of Origin | MEX |
