US Motors / Nidec

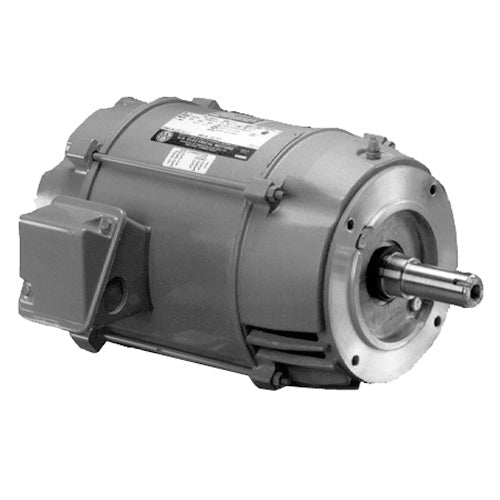

D32P1ACR US Motors / Nidec General Purpose Motor - 1 1/2 HP - 3450 RPM - 208-230/460 V - ODP
D32P1ACR US Motors / Nidec General Purpose Motor - 1 1/2 HP - 3450 RPM - 208-230/460 V - ODP
Regular price
$471.95 USD
Regular price
Sale price
$471.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D32P1ACR is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for pumps, fans, compressors, material handling and general-purpose applications where contaminants are minimal.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 4.7-4.4/2.2 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 84.0 % |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | ODP |
| Mounting | C-Face Footless |
| Rotation | Reversible |
| Bearings | Double shielded |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 11.9 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
