Marathon

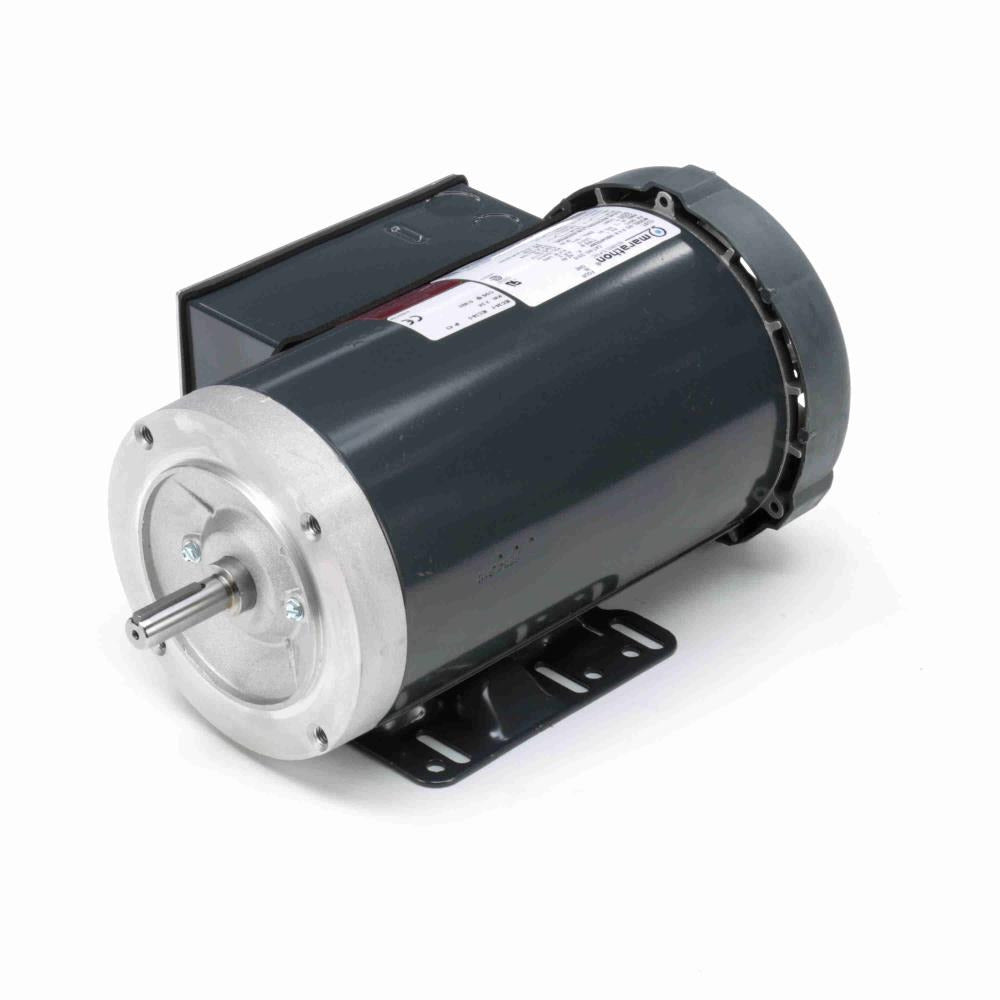

MD316 Marathon General Purpose Motor, 3 HP, 3450 RPM, 208-230 V, Single Phase, 56HC Frame, TEFC
MD316 Marathon General Purpose Motor, 3 HP, 3450 RPM, 208-230 V, Single Phase, 56HC Frame, TEFC
Regular price
$990.95 USD
Regular price
Sale price
$990.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MD316 is a new-in-box General Purpose Motor from Marathon. Manufacturer model D316. Designed for General Purpose.
Specifications
| Manufacturer Part Number | D316 |
|---|---|
| Catalog / Order Number | MD316 |
| Product Type | General Purpose Motor |
| Horsepower | 3 HP |
| Rated RPM | 3450 RPM |
| Voltage | 208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full Load Amps | 13.1-11.8 A |
| Service Factor | 1.15 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56HC |
| Enclosure | TEFC |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 56 |
| Shaft Details | Diameter 0.625 in; Extension 2.06 in |
| Rotation | Selective Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
