US Motors / Nidec

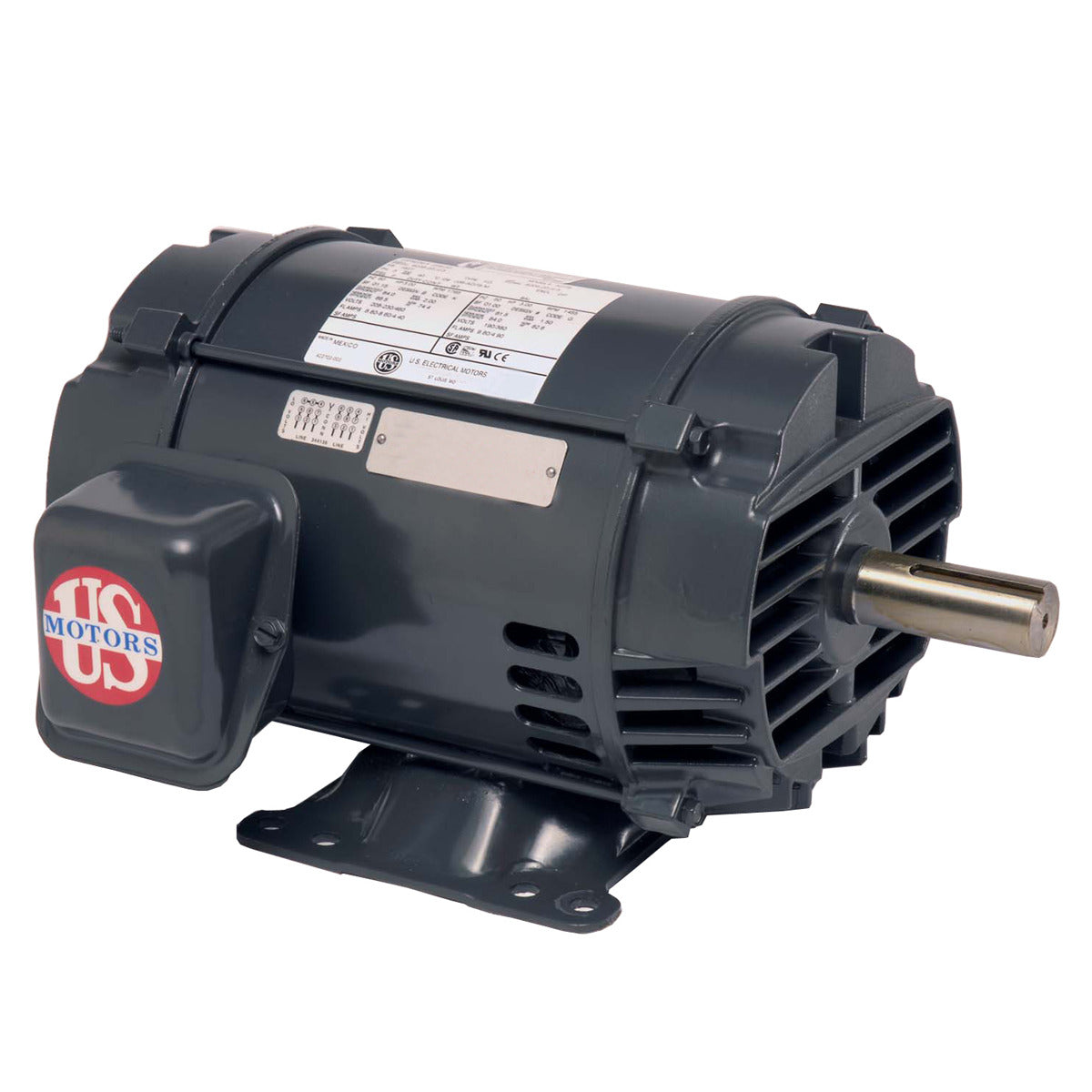

D2P2H US Motors / Nidec General Purpose Motor - 2 HP - 1740 RPM - 200 V - ODP
D2P2H US Motors / Nidec General Purpose Motor - 2 HP - 1740 RPM - 200 V - ODP
Regular price
$453.95 USD
Regular price
Sale price
$453.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D2P2H is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for pumps, fans, compressors, material handling, and other general-purpose applications where contaminants are minimal.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1740 RPM |
| Voltage | 200 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 6.4 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 86.5 % |
| Speed Count | 1 |
| Frame | 145T |
| Enclosure | ODP |
| Mounting | Rigid base (footed), F1 assembly unless noted |
| Rotation | Reversible |
| Bearings | Double-shielded bearings (140–400 frame); open bearings on 440 frame |
| Material | Rolled Steel |
| C Dimension | 12.8 in |
| Length | 16 in |
| Width | 12 in |
| Height | 10 in |
| Ship Weight | 35 lb |
| Country of Origin | MEX |
