US Motors / Nidec

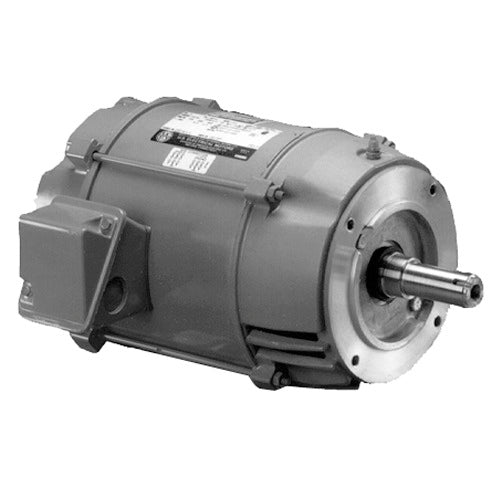

D2P1ACR US Motors / Nidec General Purpose Motor - 2 HP - 3450 RPM - 230/460 V - ODP
D2P1ACR US Motors / Nidec General Purpose Motor - 2 HP - 3450 RPM - 230/460 V - ODP
Regular price
$509.95 USD
Regular price
Sale price
$509.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D2P1ACR is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for pumps, fans, compressors, material handling and general-purpose applications where contaminants are minimal.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 6.0-5.4/2.7 A |
| Service Factor | 1.15 |
| Overload Protection | None |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 85.5 % |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | ODP |
| Mounting | C-Face Footless |
| Shaft Details | Manufacturer shaft code C |
| Rotation | Reversible |
| Bearings | 6203 / 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
