US Motors / Nidec

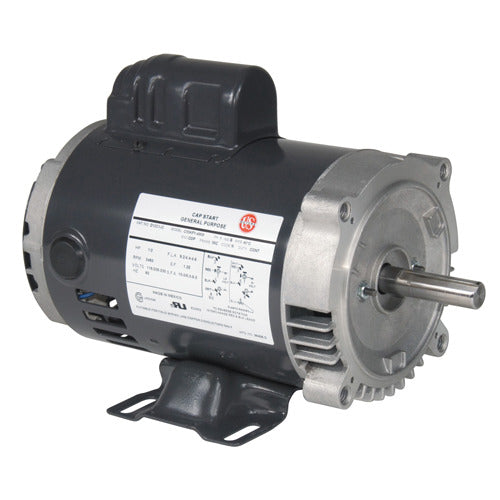

D2CP2PHC US Motors / Nidec General Purpose Motor - 2 HP - 1725 RPM - 115/230 V - ODP
D2CP2PHC US Motors / Nidec General Purpose Motor - 2 HP - 1725 RPM - 115/230 V - ODP
Regular price
$1,068.95 USD
Regular price
Sale price
$1,068.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D2CP2PHC is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for air compressors, commercial-duty pumps, conveyors, blowers, and general industrial equipment.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 17.0/8.5 A |
| Service Factor | 1.15 |
| Overload Protection | Not thermally protected |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56HC |
| Enclosure | ODP |
| Mounting | C-face, footed |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings; locked drive-end bearing |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 13.4 in |
| Ship Weight | 46 lb |
| Country of Origin | MEX |
