US Motors / Nidec

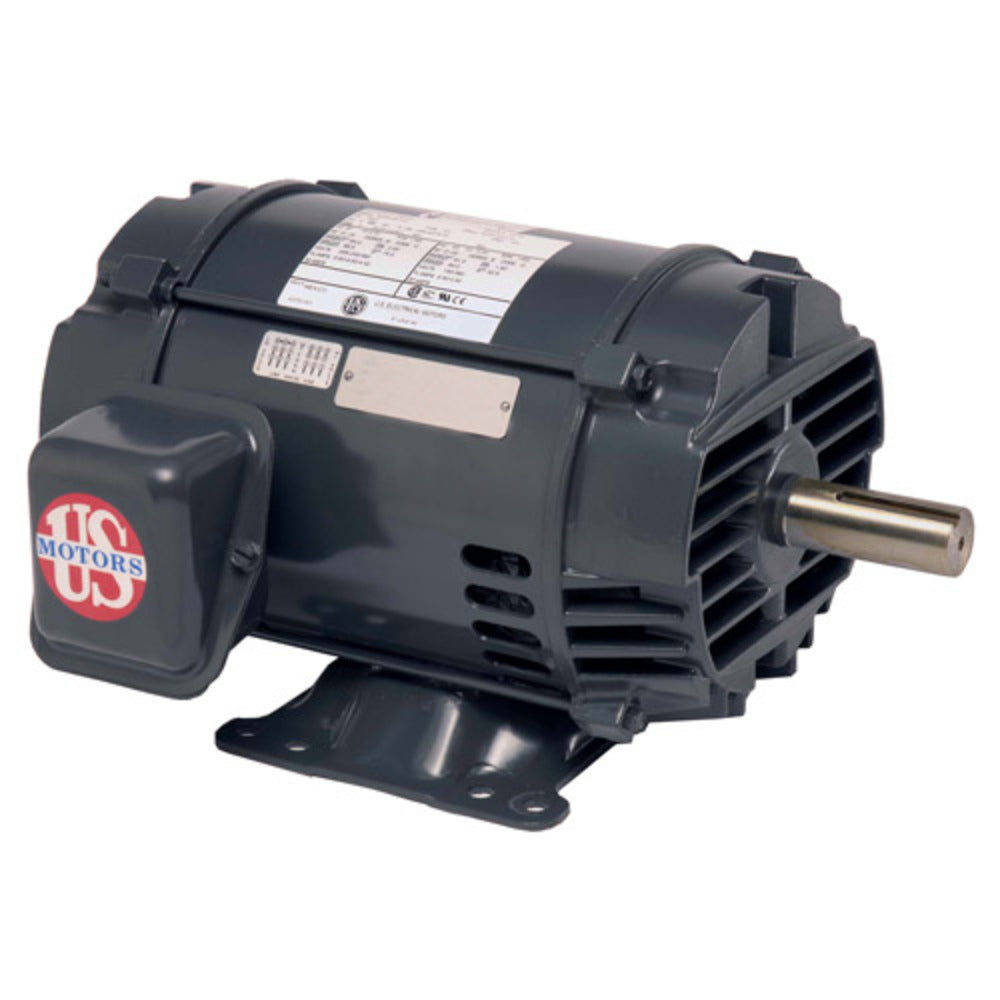

D25P2D US Motors / Nidec General Purpose Motor - 25 HP - 1775 RPM - 208-230/460 V - ODP
D25P2D US Motors / Nidec General Purpose Motor - 25 HP - 1775 RPM - 208-230/460 V - ODP
Regular price
$1,746.95 USD
Regular price
Sale price
$1,746.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D25P2D is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial and commercial applications.
Specifications
| Horsepower | 25 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1775 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 65-58/29.2 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 93.6 % |
| Speed Count | 1 |
| Frame | 284T |
| Enclosure | ODP |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | 6310-2Z-J/C3 / 6309-2Z-J/C3 |
| Material | Rolled Steel |
| Ship Weight | 225 lb |
