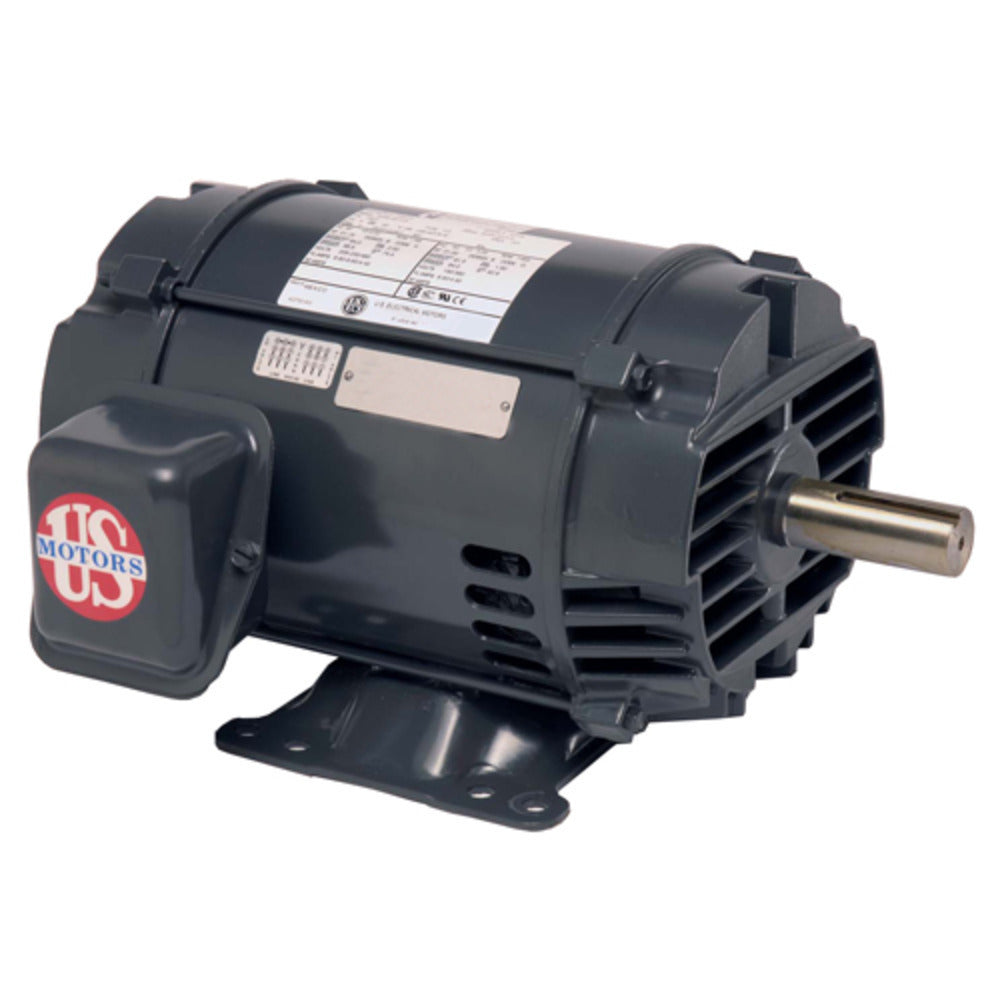

D1P2D US Motors / Nidec NEMA Premium Efficient Motor - 1 HP - 1760 RPM - 208-230/460 V - ODP
D1P2D US Motors / Nidec NEMA Premium Efficient Motor - 1 HP - 1760 RPM - 208-230/460 V - ODP
Regular price
$358.95 USD
Regular price
Sale price
$358.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D1P2D is a new-in-box NEMA Premium Efficient Motor from US Motors / Nidec. Designed for general-purpose industrial applications.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1760 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 3.2-3.1/1.6 A |
| Service Factor | 1.15 |
| Overload Protection | Not available from manufacturer |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 85.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 143T |
| Enclosure | ODP |
| Mounting | Horizontal footed, F1 |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | DE 6205-2Z-J/C3; ODE 6203-2RS |
| Material | Rolled Steel |
| C Dimension | 12.8 in |
| Length | 18 in |
| Width | 14 in |
| Height | 11 in |
| Ship Weight | 30 lb |
| Country of Origin | MEX |
