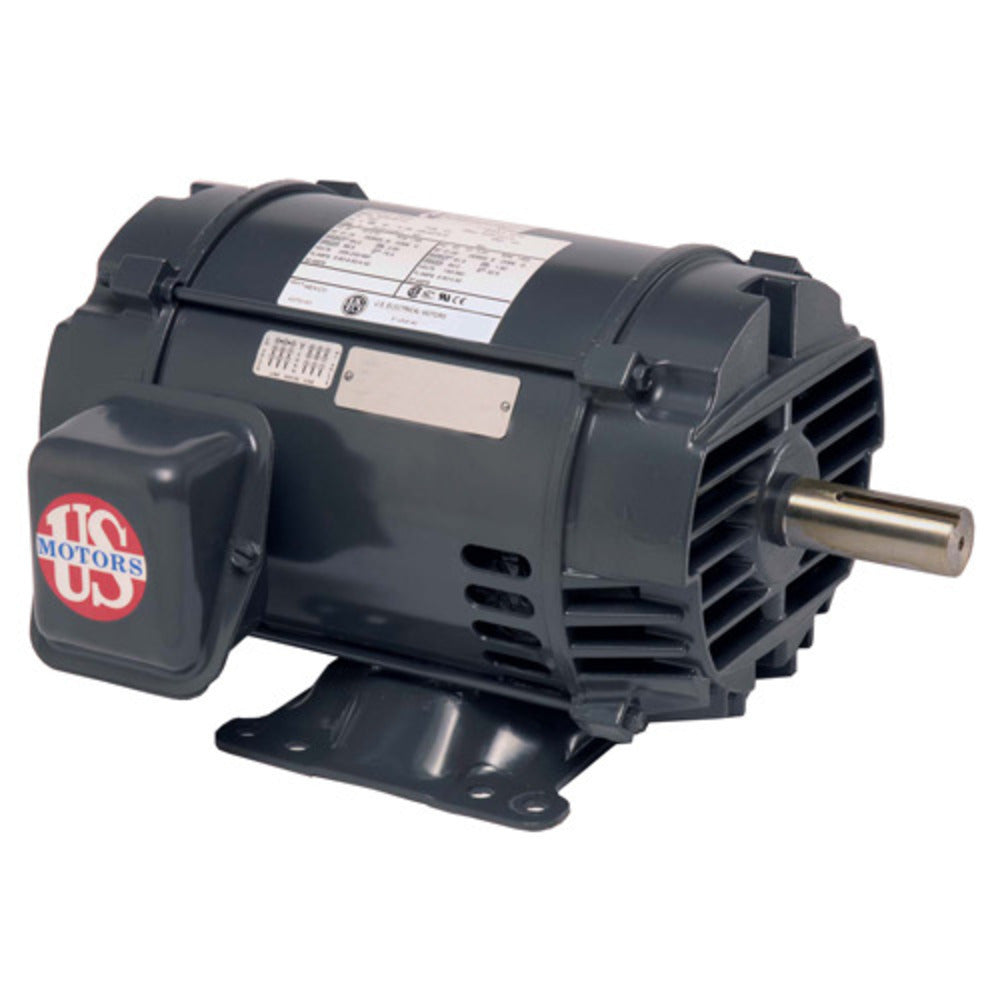

D1P2AH US Motors / Nidec NEMA Premium Efficient Motor - 1 HP - 1725 RPM - 208-230/460 V - ODP
D1P2AH US Motors / Nidec NEMA Premium Efficient Motor - 1 HP - 1725 RPM - 208-230/460 V - ODP
Regular price
$358.95 USD
Regular price
Sale price
$358.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D1P2AH is a new-in-box NEMA Premium Efficient Motor from US Motors / Nidec. Designed for pumps, fans, compressors, material handling, and general-purpose applications.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 3.2-3.0/1.5 A |
| Service Factor | 1.15 |
| Overload Protection | Not available from manufacturer |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 83.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56H |
| Enclosure | ODP |
| Mounting | Rigid base, F1 |
| Shaft Details | 56H frame configuration |
| Rotation | Reversible |
| Bearings | Ball (size not listed in manufacturer table) |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 12.4 in |
| Length | 17 in |
| Width | 13 in |
| Height | 10 in |
| Ship Weight | 32 lb |
