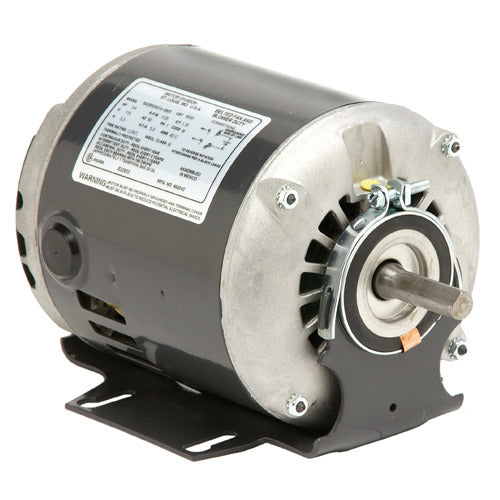

D16B3N4Z9 US Motors / Nidec General Purpose Motor - 1/6 HP - 1140 RPM - 115 V - ODP
D16B3N4Z9 US Motors / Nidec General Purpose Motor - 1/6 HP - 1140 RPM - 115 V - ODP
Regular price
$325.95 USD
Regular price
Sale price
$325.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D16B3N4Z9 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for commercial and industrial ventilation systems.
Specifications
| Horsepower | 1/6 HP |
|---|---|
| Nominal RPM | 1200 RPM |
| Rated RPM | 1140 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | 4.5 A |
| Service Factor | 1.35 |
| Overload Protection | None |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | A or B |
| Speed Count | 1 |
| Frame | 48Z |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | 1/2 in x 1.875 in |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| C Dimension | 10.3 in |
| Ship Weight | 15 lb |
| Country of Origin | MEX |
