US Motors / Nidec

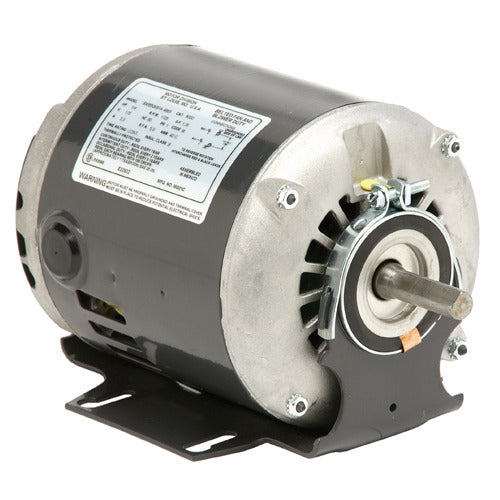

D14B2N49 US Motors / Nidec General Purpose Motor - 1/4 HP - 1725 RPM - 115 V - ODP
D14B2N49 US Motors / Nidec General Purpose Motor - 1/4 HP - 1725 RPM - 115 V - ODP
Regular price
$187.95 USD
Regular price
Sale price
$187.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D14B2N49 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for commercial and industrial ventilation systems.
Specifications
| Horsepower | 1/4 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | 5.1 A |
| Service Factor | 1.35 |
| Overload Protection | None |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 57 % |
| Speed Count | 1 |
| Frame | 48 |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | CW/CCW |
| Bearings | BALL / BALL |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| Length | 17 in |
| Width | 13 in |
| Height | 11 in |
| Ship Weight | 22 lb |
| Country of Origin | MEX |
