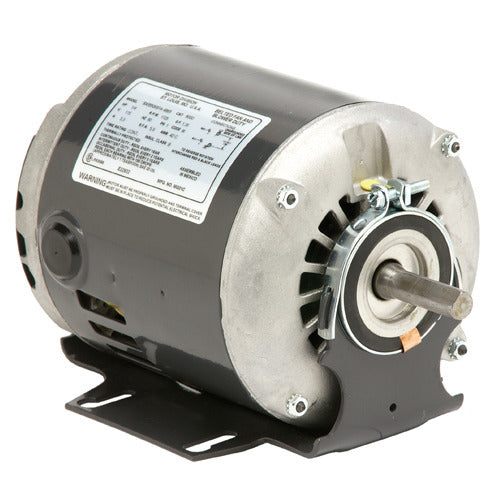

D13B2N4Z9 US Motors / Nidec General Purpose Motor - 1/3 HP - 1725 RPM - 115 V - ODP
D13B2N4Z9 US Motors / Nidec General Purpose Motor - 1/3 HP - 1725 RPM - 115 V - ODP
Regular price
$271.95 USD
Regular price
Sale price
$271.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D13B2N4Z9 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial and commercial applications.
Specifications
| Horsepower | 1/3 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | 7 A |
| Service Factor | 1.35 |
| Overload Protection | None |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 48 |
| Enclosure | ODP |
| Mounting | Cradle/Stud |
| Shaft Details | Manufacturer shaft code Z |
| Rotation | Reversible |
| Bearings | 6203 / 6203 |
| Ship Weight | 22 lb |
