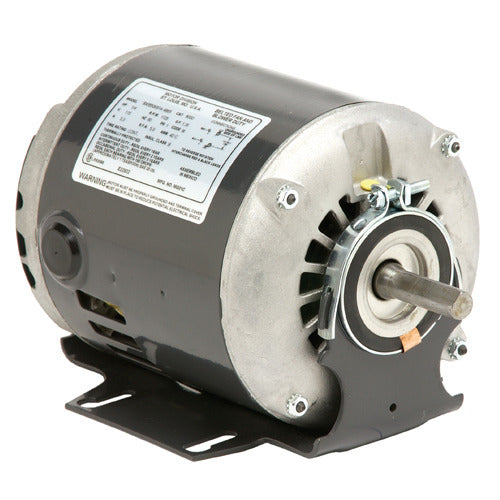

D13B10N49 US Motors / Nidec General Purpose Motor - 1/3 HP - 1725/1140 RPM - 115 V - ODP
D13B10N49 US Motors / Nidec General Purpose Motor - 1/3 HP - 1725/1140 RPM - 115 V - ODP
Regular price
$300.95 USD
Regular price
Sale price
$300.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D13B10N49 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for two-speed fans, blowers, and general-purpose equipment.
Specifications
| Horsepower | 1/3 HP |
|---|---|
| Nominal RPM | 1800/1200 RPM |
| Rated RPM | 1725/1140 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | 6.4/4.0 A |
| Service Factor | 1 |
| Overload Protection | None |
| Duty Rating | Not listed by manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 53.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 2 |
| Frame | 48 |
| Enclosure | ODP |
| Mounting | Resilient mount |
| Shaft Configuration | Y |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | CW viewed from drive end; reversible |
| Bearings | Sleeve bearings |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| Length | 17 in |
| Width | 13 in |
| Height | 9 in |
| Ship Weight | 17 lb |
| Country of Origin | MEX |
