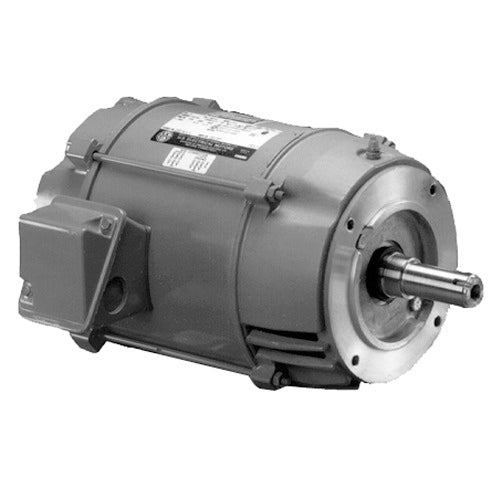

D12P2ACR US Motors / Nidec General Purpose Motor - 1/2 HP - 1725/1425 RPM - 208-230/460 V - ODP
D12P2ACR US Motors / Nidec General Purpose Motor - 1/2 HP - 1725/1425 RPM - 208-230/460 V - ODP
Regular price
$318.95 USD
Regular price
Sale price
$318.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D12P2ACR is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general industrial fans, blowers, pumps, and direct-connected equipment.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1800/1500 RPM |
| Rated RPM | 1725/1425 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 1.98-1.90/0.98 A |
| Service Factor | 1.25 |
| Overload Protection | None |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 78.2 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | ODP |
| Mounting | C-face footless |
| Shaft Configuration | C |
| Shaft Details | Manufacturer shaft code C |
| Rotation | Reversible |
| Bearings | 6203 ball bearing, both ends |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 11.4 in |
| Ship Weight | 26 lb |
| Country of Origin | MEX |
