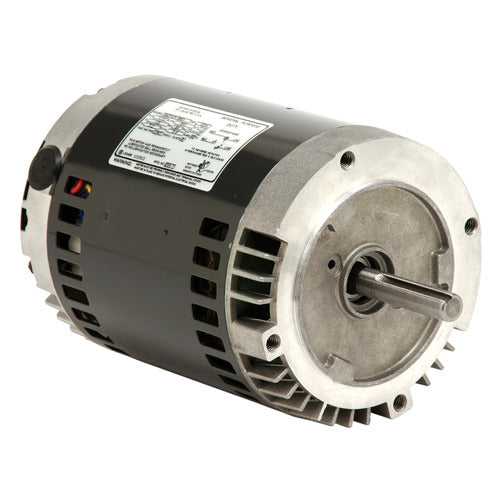

D12CPA2PCR US Motors / Nidec General Purpose Motor - 1/2 HP - 1725 RPM - 115/230 V - ODP
D12CPA2PCR US Motors / Nidec General Purpose Motor - 1/2 HP - 1725 RPM - 115/230 V - ODP
Regular price
$670.95 USD
Regular price
Sale price
$670.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D12CPA2PCR is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for air compressors, commercial-duty pumps, conveyors, blowers, and general industrial equipment.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 5.0/2.6 A |
| Service Factor | 1.25 |
| Overload Protection | Automatic reset thermal protector |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | ODP |
| Mounting | C-face, footless |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings; locked drive-end bearing |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 9.9 in |
| Ship Weight | 22 lb |
| Country of Origin | MEX |
