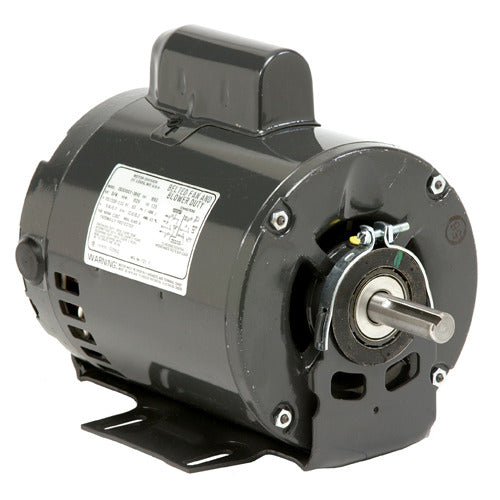

D12CP3PH9 US Motors / Nidec General Purpose Motor - 1/2 HP - 1140 RPM - 115/230 V - ODP
D12CP3PH9 US Motors / Nidec General Purpose Motor - 1/2 HP - 1140 RPM - 115/230 V - ODP
Regular price
$701.95 USD
Regular price
Sale price
$701.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D12CP3PH9 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for air compressors, pumps, conveyors, blowers and general industrial equipment.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1200 RPM |
| Rated RPM | 1140 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 4.8/2.4 A |
| Service Factor | 1.25 |
| Overload Protection | None |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 76.2 % |
| Speed Count | 1 |
| Frame | 56H |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Manufacturer shaft code H |
| Rotation | CCW SWITCH END REV |
| Bearings | 6203 / 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 36 lb |
| Country of Origin | MEX |
