US Motors / Nidec

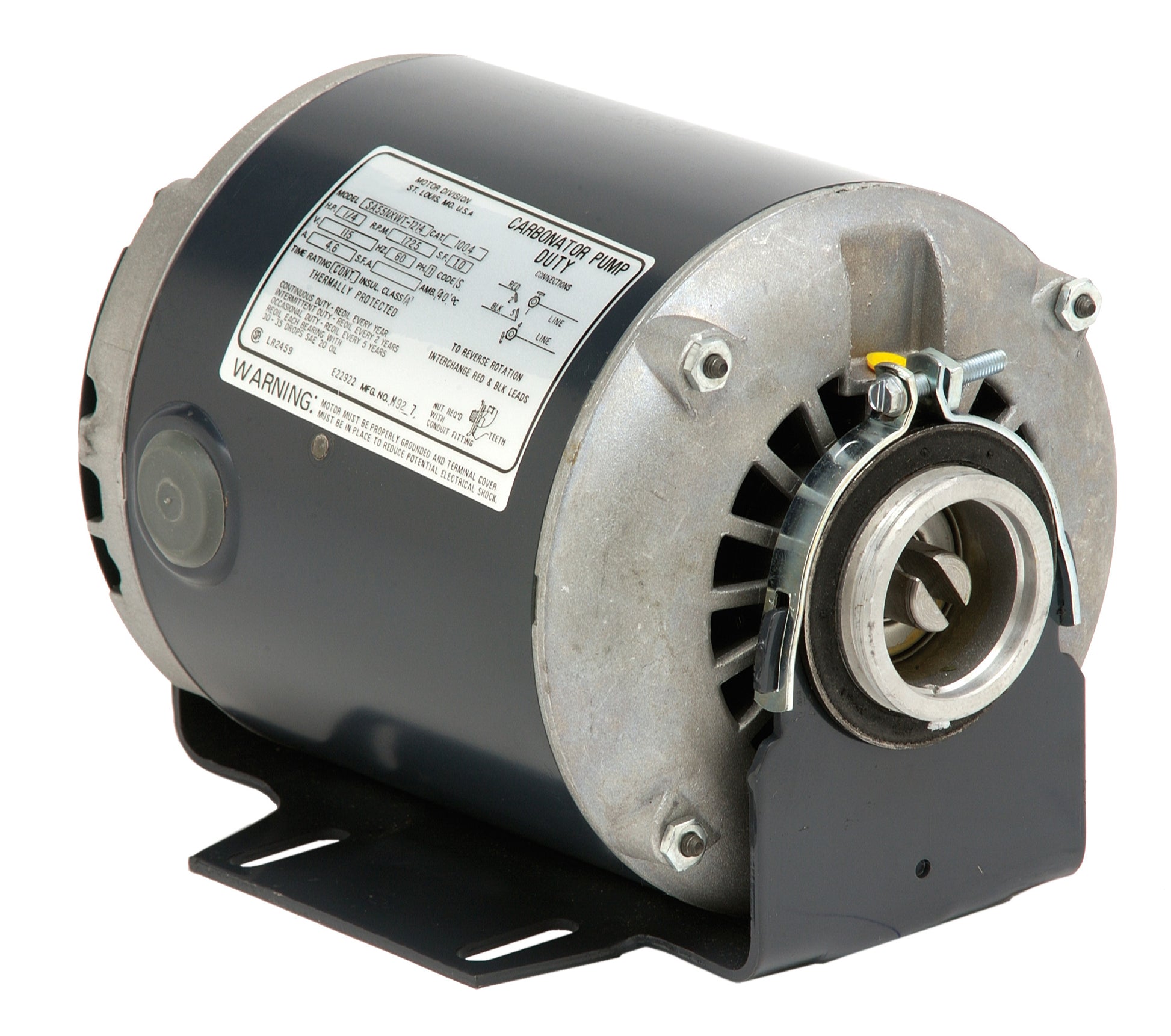

D12B2N4 US Motors / Nidec General Purpose Motor - 1/2 HP - 1725 RPM - 115 V - ODP
D12B2N4 US Motors / Nidec General Purpose Motor - 1/2 HP - 1725 RPM - 115 V - ODP
Regular price
$307.95 USD
Regular price
Sale price
$307.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
D12B2N4 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for commercial and industrial ventilation systems.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | 8.8 A |
| Service Factor | 1 |
| Overload Protection | None |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 62.9 % |
| Speed Count | 1 |
| Frame | 48 |
| Enclosure | ODP |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | CCW lead end; reversible |
| Bearings | 6203 / 6203 |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| Ship Weight | 22 lb |
| Country of Origin | MEX |
