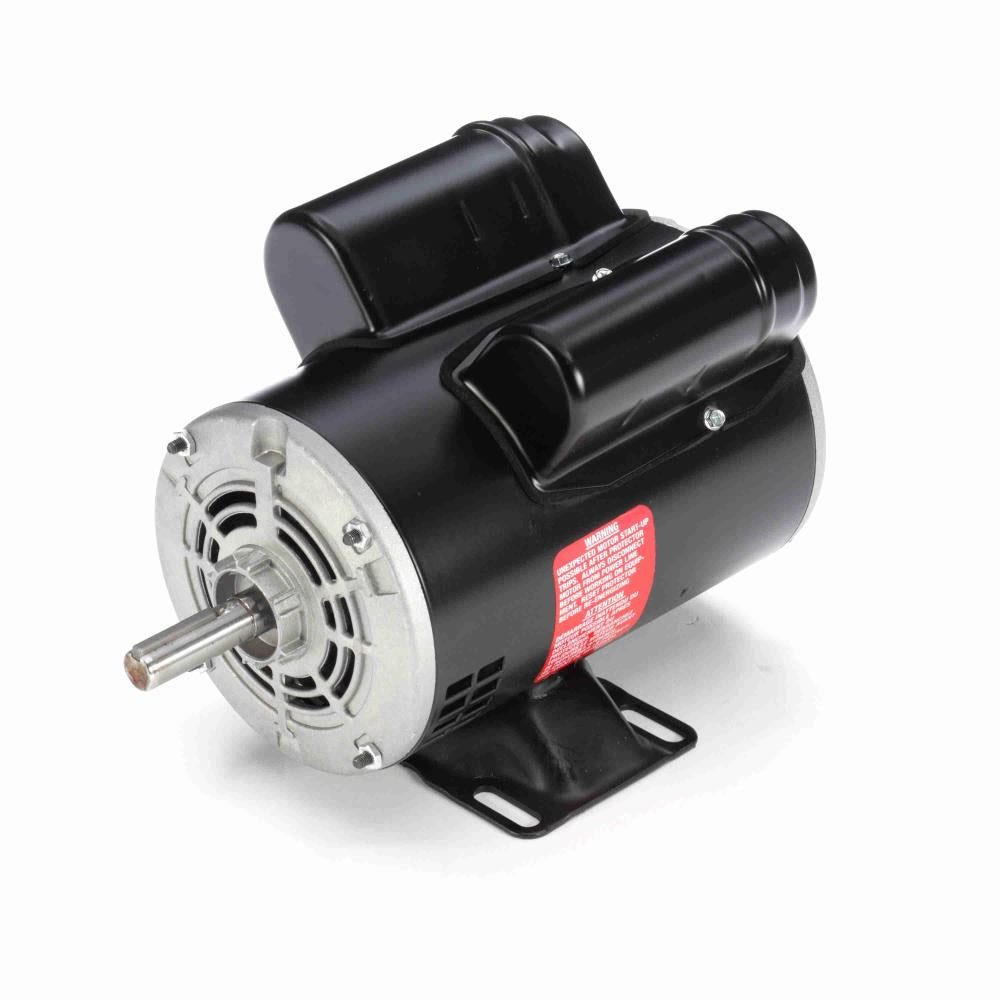

MD010 Marathon Pressure Washer Motor, 1 HP, 3450 RPM, 115/208-230 V, Single Phase, 56 Frame, ODP
MD010 Marathon Pressure Washer Motor, 1 HP, 3450 RPM, 115/208-230 V, Single Phase, 56 Frame, ODP
Regular price
$354.95 USD
Regular price
Sale price
$354.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MD010 is a new-in-box Pressure Washer Motor from Marathon. Manufacturer model D010. Designed for Industrial motor.
Specifications
| Manufacturer Part Number | D010 |
|---|---|
| Catalog / Order Number | MD010 |
| Product Type | Pressure Washer Motor |
| Horsepower | 1 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full Load Amps | 10.6/5.5-5.3 A |
| Service Factor | 1.15 |
| Overload Protection | Manual |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | F1 ONLY |
| Shaft Configuration | T |
| Shaft Details | Diameter 0.625 in; Extension 1.88 in |
| Rotation | Selective Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
