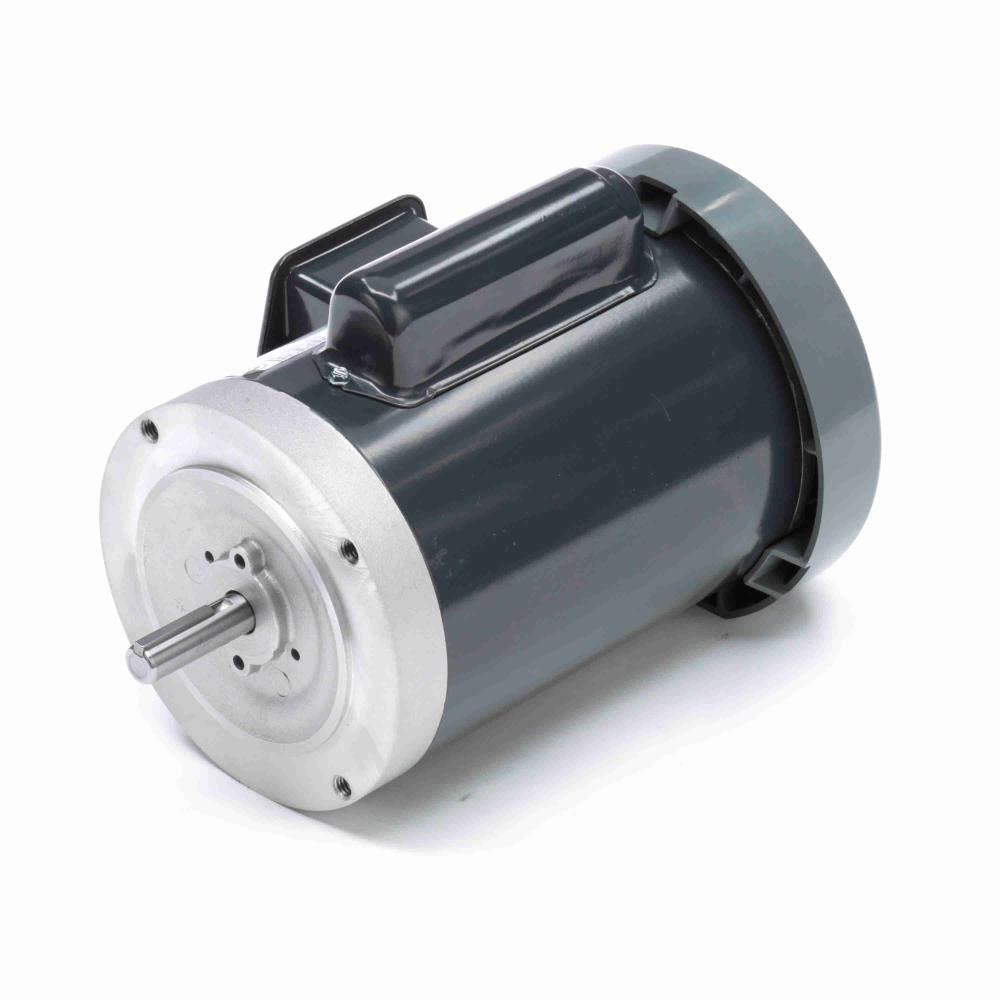

MC855 Marathon General Purpose Motor, 1-1/2 HP, 3450 RPM, 115/230 V, Single Phase, 56C Frame, TEFC
MC855 Marathon General Purpose Motor, 1-1/2 HP, 3450 RPM, 115/230 V, Single Phase, 56C Frame, TEFC
Regular price
$759.95 USD
Regular price
Sale price
$759.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MC855 is a new-in-box General Purpose Motor from Marathon. Manufacturer model C855. Designed for General Purpose.
Specifications
| Manufacturer Part Number | C855 |
|---|---|
| Catalog / Order Number | MC855 |
| Product Type | General Purpose Motor |
| Horsepower | 1-1/2 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full Load Amps | 16.4,8.2 A |
| Service Factor | 1 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | Round |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
