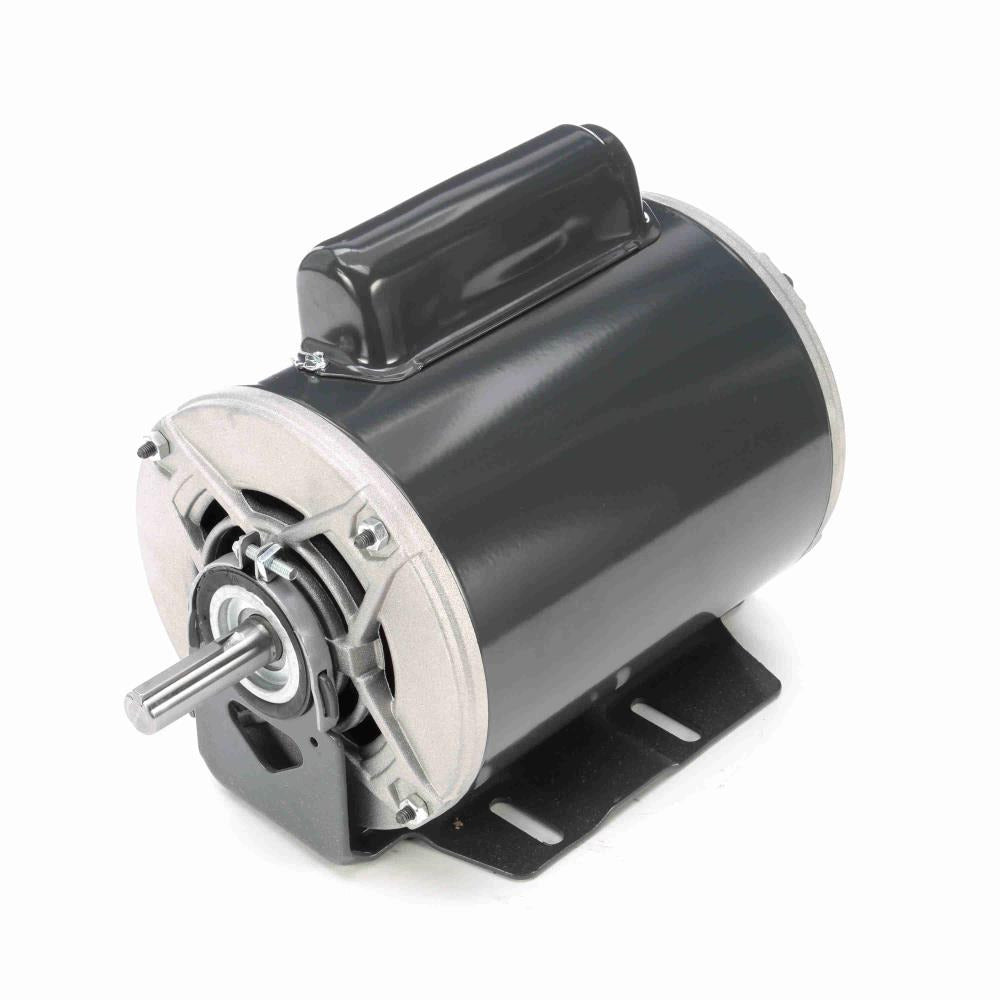

C548 Marathon General Purpose Motor - 1/3 HP - 1140 RPM - 115/230 V - Drip Proof
C548 Marathon General Purpose Motor - 1/3 HP - 1140 RPM - 115/230 V - Drip Proof
Regular price
$674.95 USD
Regular price
Sale price
$674.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
C548 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | C548 |
|---|---|
| Manufacturer Model | 5KC49PN6051X |
| Stu's / Vendor SKU | MC548 |
Specifications
| Horsepower | 1/3 HP |
|---|---|
| kW | 0.25 kW |
| Rated RPM | 1140 RPM |
| Voltage | 115/230 V |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Service Factor | 1.35 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 50 % |
| Enclosure | Drip Proof |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in |
| Rotation | Counterclockwise/Clockwise |
| Bearings | BALL / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
