Marathon

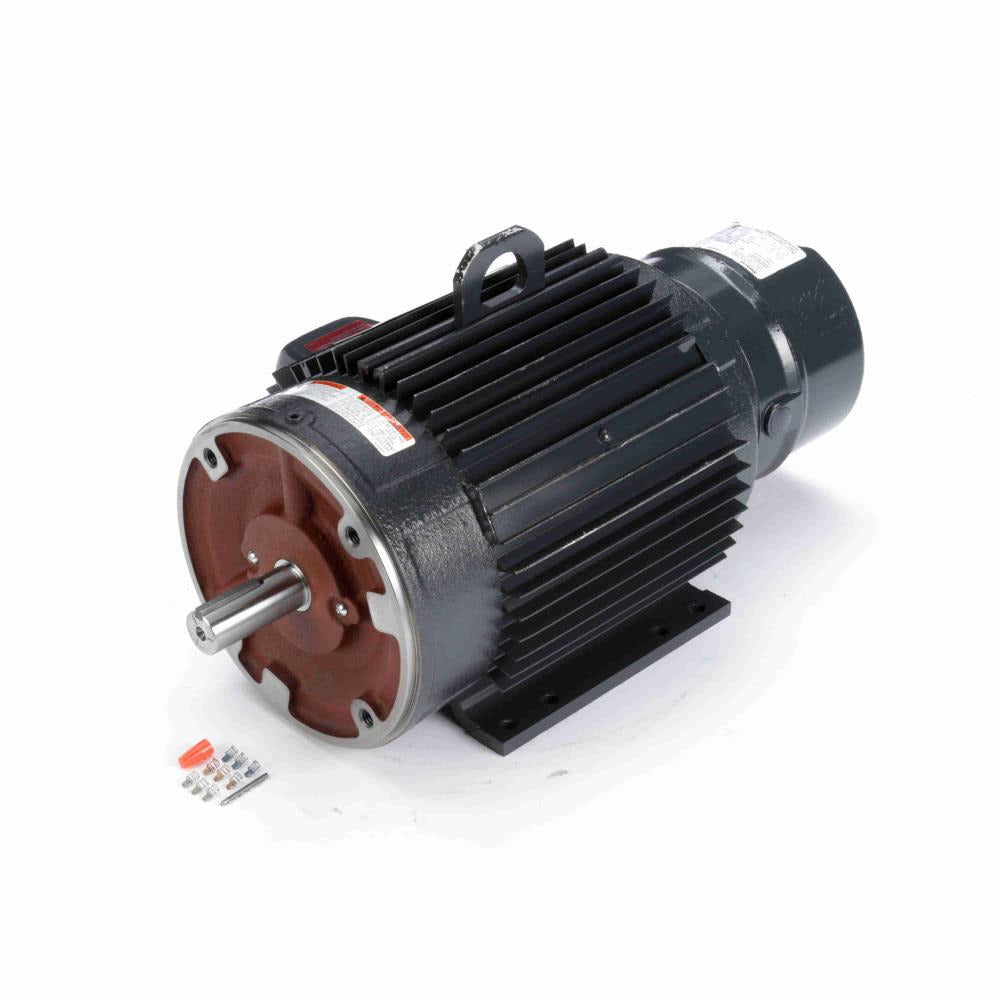

C406A Marathon Brake Motor - 5-3 HP - Totally Enclosed Non Ventilated
C406A Marathon Brake Motor - 5-3 HP - Totally Enclosed Non Ventilated
Regular price
$2,574.95 USD
Regular price
Sale price
$2,574.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
C406A is a new-in-box Brake Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | C406A |
|---|---|
| Manufacturer Model | 184TTTHD16038 |
| Stu's / Vendor SKU | MC406 |
Specifications
| Horsepower | 5 HP |
|---|---|
| Alternate Horsepower | 3 HP |
| Phase | Three Phase |
| Electrical Type | Squirrel Cage Inverter Rated |
| Overload Protection | No Protection |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Enclosure | Totally Enclosed Non Ventilated |
| Mounting | F1/F2 CAPABLE |
| Shaft Configuration | T |
| Shaft Details | Diameter 1.125 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Aluminum |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
