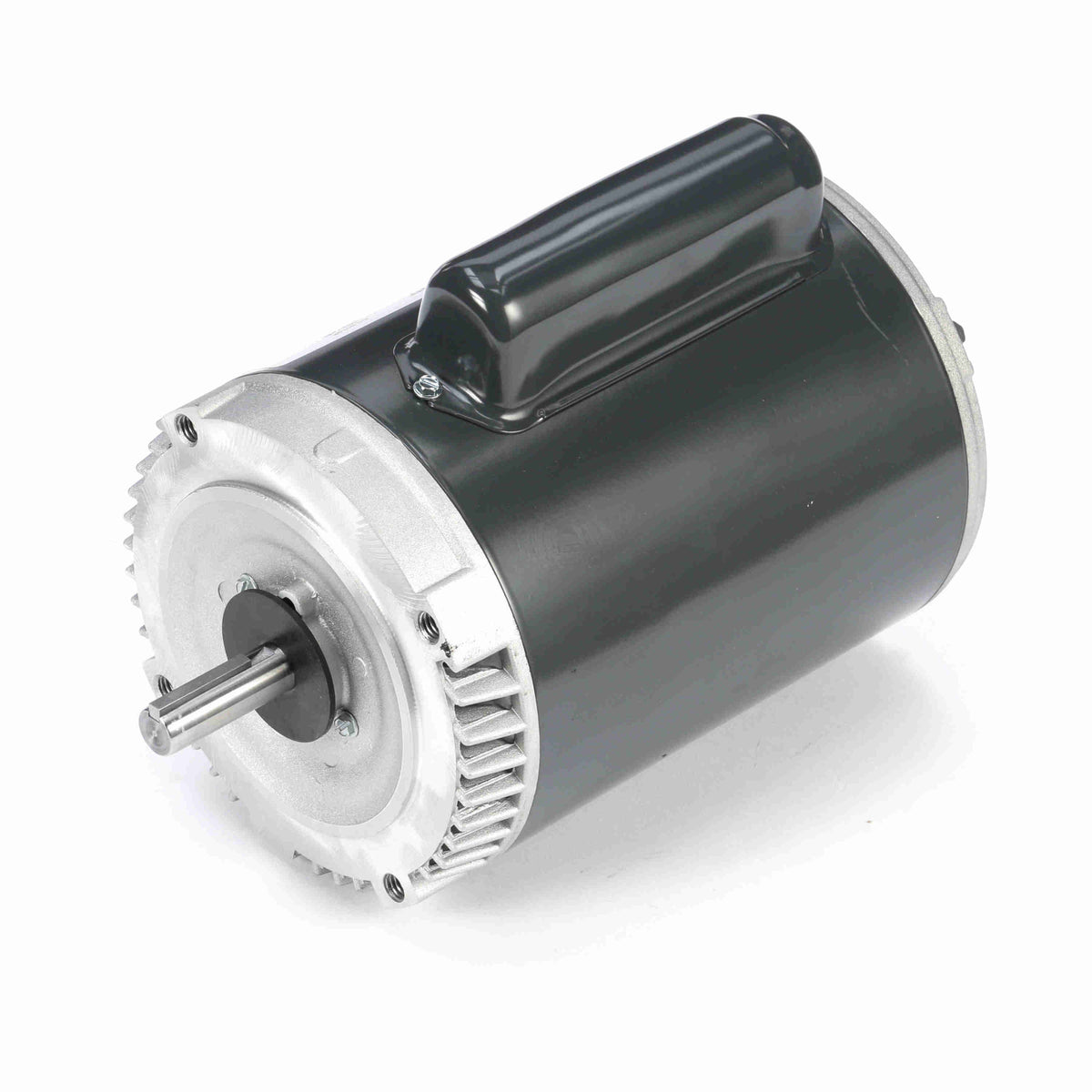

MC336 Marathon Pump Motor, 1-1/2 HP, 3450 RPM, 115/208-230 V, Single Phase, 56C Frame, ODP
MC336 Marathon Pump Motor, 1-1/2 HP, 3450 RPM, 115/208-230 V, Single Phase, 56C Frame, ODP
Regular price
$419.95 USD
Regular price
Sale price
$419.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MC336 is a new-in-box Pump Motor from Marathon. Manufacturer model C336. Designed for General Purpose.
Specifications
| Manufacturer Part Number | C336 |
|---|---|
| Catalog / Order Number | MC336 |
| Product Type | Pump Motor |
| Horsepower | 1-1/2 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full Load Amps | 18.4,9.8-9.2 A |
| Service Factor | 1.3 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56C |
| Enclosure | ODP |
| Mounting | Round |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in |
| Rotation | Clockwise/Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
