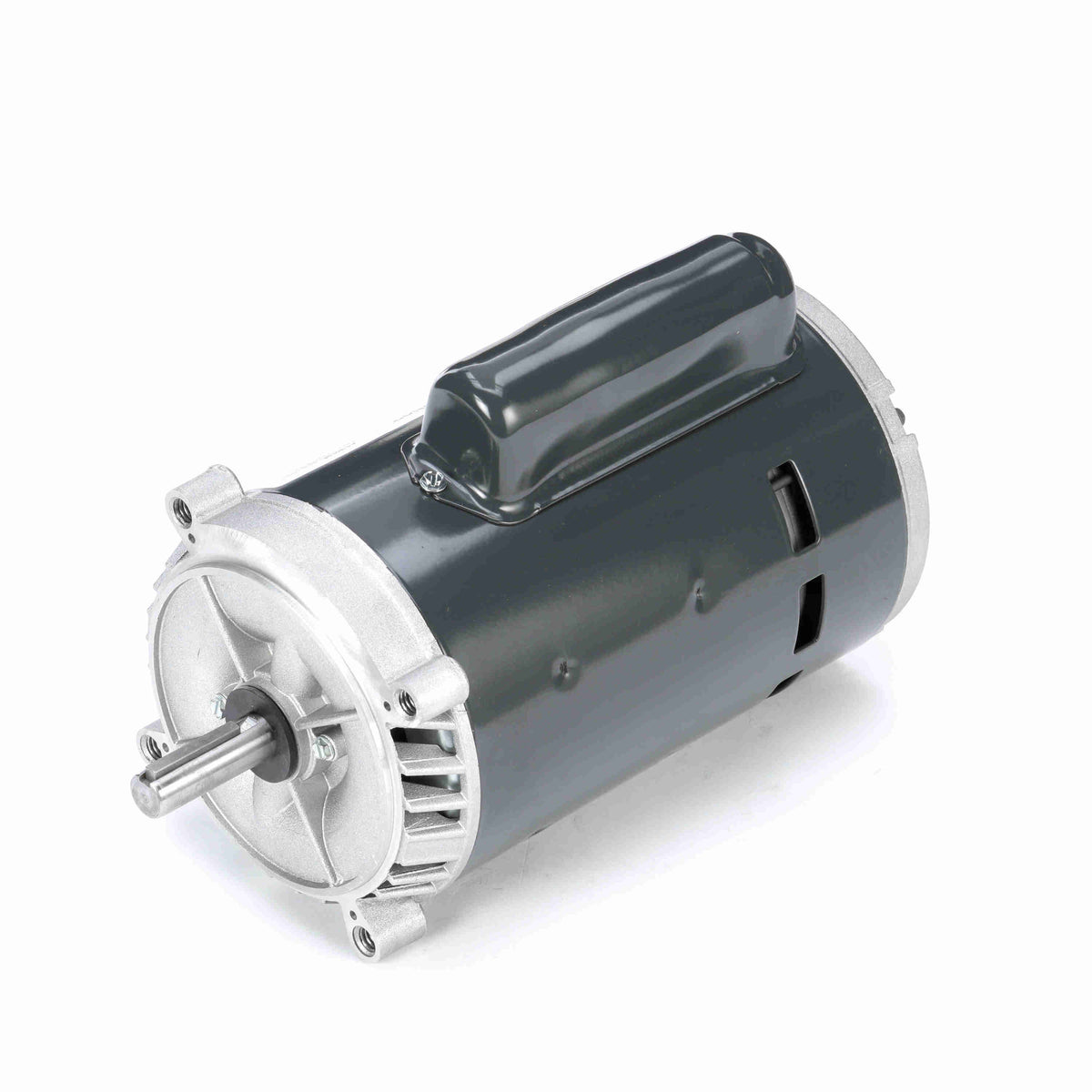

MC332 Marathon HVAC/R Motor, 3/4 HP, 3450 RPM, 115/230 V, Single Phase, 56C Frame, ODP
MC332 Marathon HVAC/R Motor, 3/4 HP, 3450 RPM, 115/230 V, Single Phase, 56C Frame, ODP
Regular price
$287.95 USD
Regular price
Sale price
$287.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MC332 is a new-in-box HVAC/R Motor from Marathon. Manufacturer model C332. Designed for Industrial motor.
Specifications
| Manufacturer Part Number | C332 |
|---|---|
| Catalog / Order Number | MC332 |
| Product Type | HVAC/R Motor |
| Horsepower | 3/4 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full Load Amps | 11.2,5.6 A |
| Service Factor | 1.5 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56C |
| Enclosure | ODP |
| Mounting | Round |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in Thru-bolts Extension 0 in |
| Rotation | Clockwise/Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
