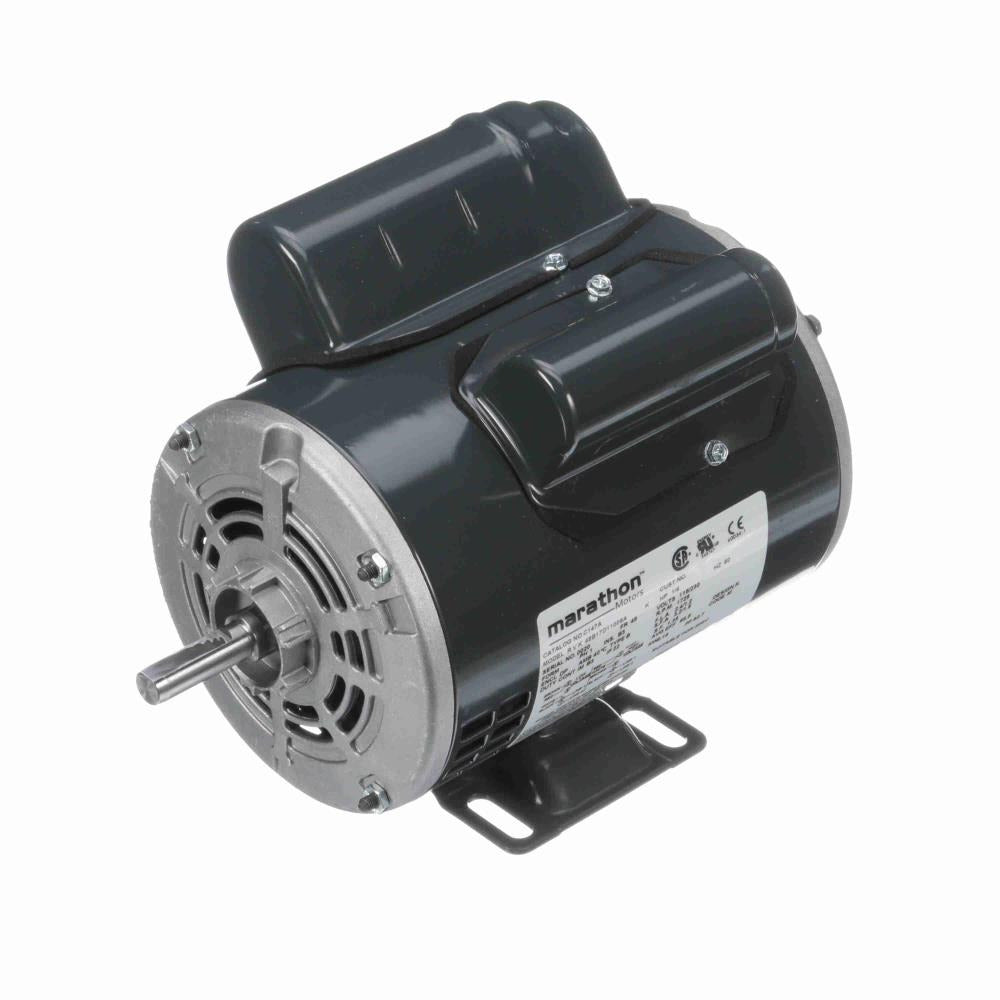

C147A Marathon General Purpose Motor - 1/4 HP - 1725 RPM - 115/230 V - Drip Proof
C147A Marathon General Purpose Motor - 1/4 HP - 1725 RPM - 115/230 V - Drip Proof
Regular price
$371.95 USD
Regular price
Sale price
$371.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
C147A is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | C147A |
|---|---|
| Manufacturer Model | 048B17D11005 |
| Stu's / Vendor SKU | MC147A |
Specifications
| Horsepower | 1/4 HP |
|---|---|
| kW | 0.19 kW |
| Rated RPM | 1725 RPM |
| Voltage | 115/230 V |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 2.4/1.2 A |
| Service Factor | 1.35 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 68.5 % |
| Enclosure | Drip Proof |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 48 |
| Shaft Details | Diameter 0.500 in; Extension 1.59 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
