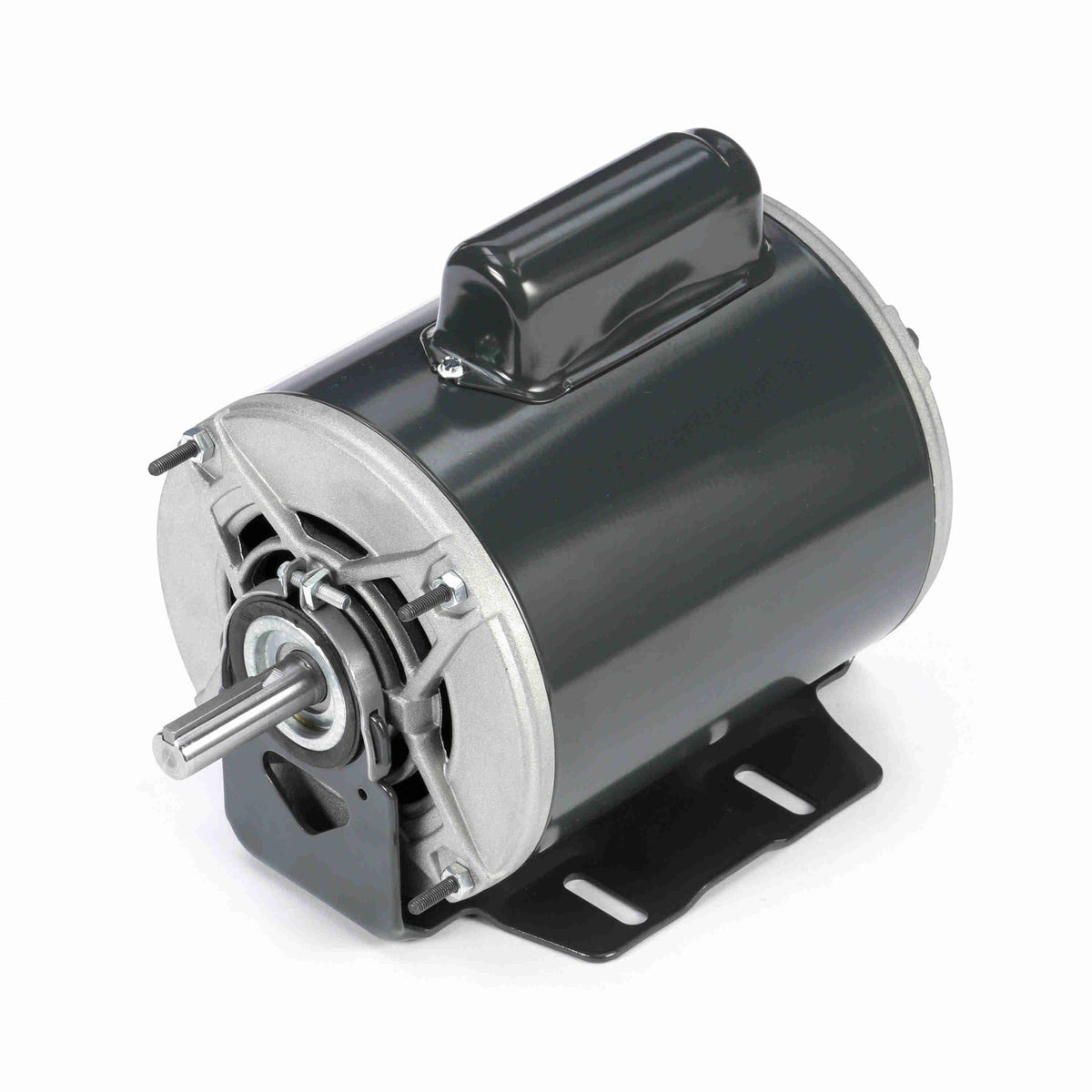

MC1156 Marathon General Purpose Motor, 3/4 HP, 1725 RPM, 115/208-230 V, Single Phase, 56 Frame, ODP
MC1156 Marathon General Purpose Motor, 3/4 HP, 1725 RPM, 115/208-230 V, Single Phase, 56 Frame, ODP
Regular price
$582.95 USD
Regular price
Sale price
$582.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MC1156 is a new-in-box General Purpose Motor from Marathon. Manufacturer model C1156. Designed for General Purpose.
Specifications
| Manufacturer Part Number | C1156 |
|---|---|
| Catalog / Order Number | MC1156 |
| Product Type | General Purpose Motor |
| Horsepower | 3/4 HP |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full Load Amps | 13.3,6.5-6.6 A |
| Service Factor | 1.25 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
