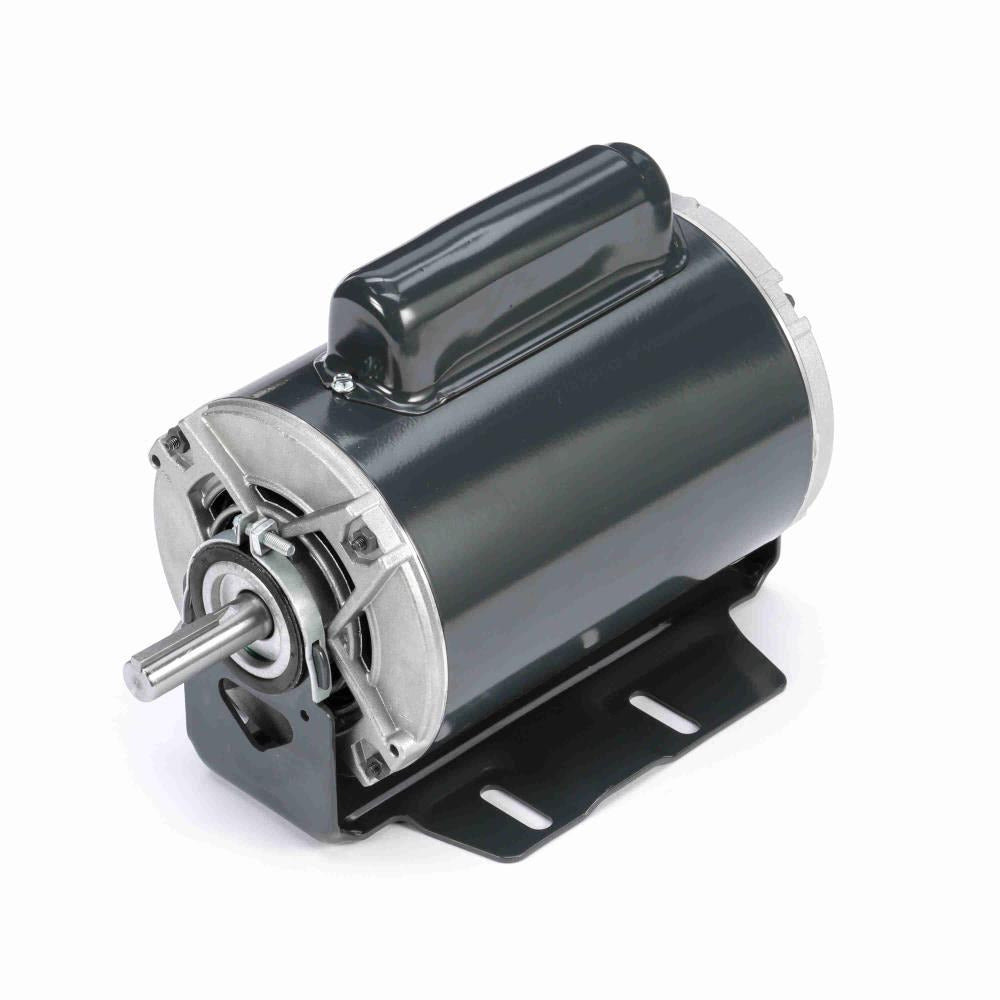

MC1155 Marathon General Purpose Motor, 3/4 HP, 3450 RPM, 115/208-230 V, Single Phase, 56 Frame, ODP
MC1155 Marathon General Purpose Motor, 3/4 HP, 3450 RPM, 115/208-230 V, Single Phase, 56 Frame, ODP
Regular price
$377.95 USD
Regular price
Sale price
$377.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MC1155 is a new-in-box General Purpose Motor from Marathon. Manufacturer model C1155. Designed for General Purpose.
Specifications
| Manufacturer Part Number | C1155 |
|---|---|
| Catalog / Order Number | MC1155 |
| Product Type | General Purpose Motor |
| Horsepower | 3/4 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full Load Amps | 10.0,4.9-5.0 A |
| Service Factor | 1.25 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
