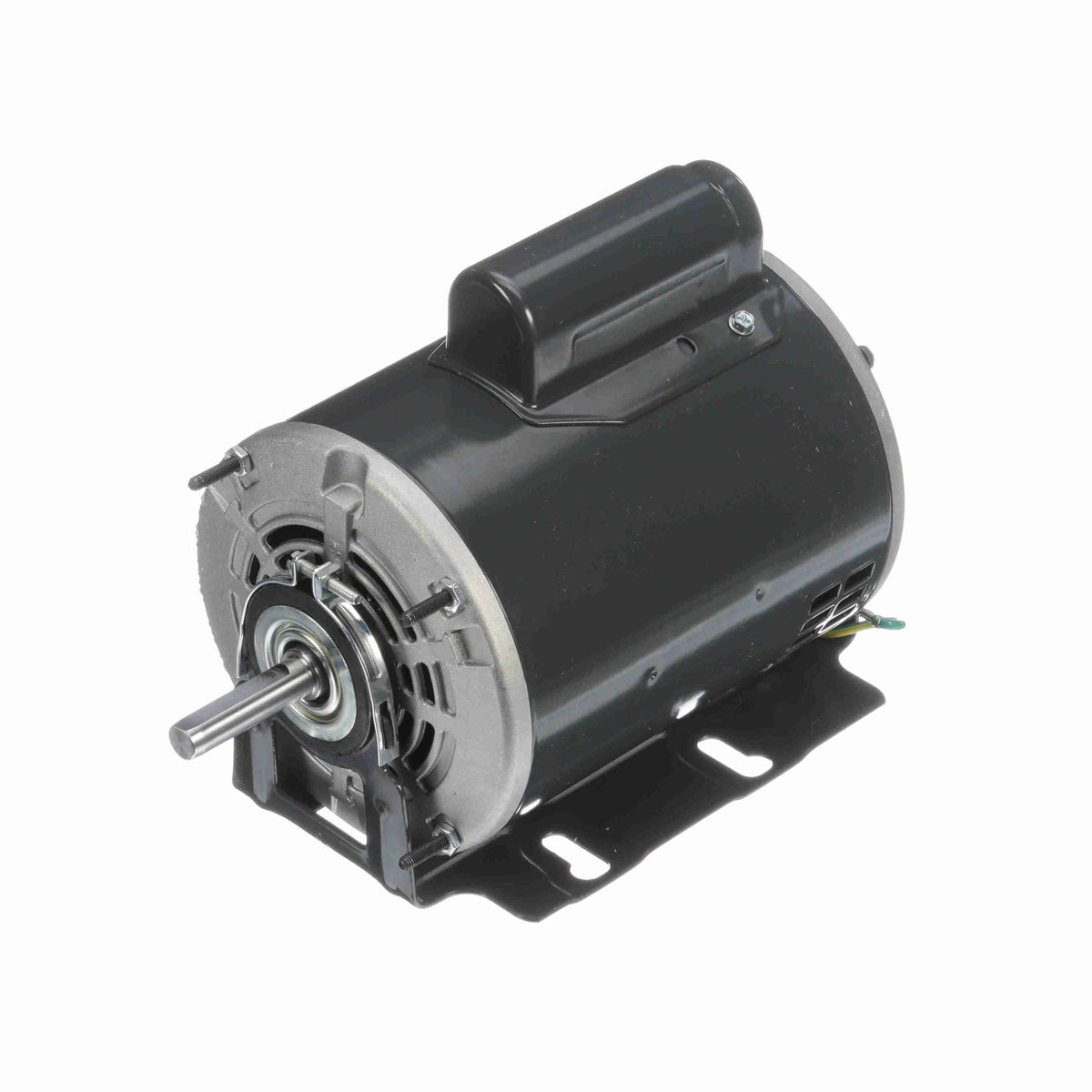

B315 Marathon Fan & Blower Motor - 1/3 HP - 1725 RPM - 115/208-230 V - Drip Proof
B315 Marathon Fan & Blower Motor - 1/3 HP - 1725 RPM - 115/208-230 V - Drip Proof
Regular price
$316.95 USD
Regular price
Sale price
$316.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
B315 is a new-in-box Fan & Blower Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | B315 |
|---|---|
| Manufacturer Model | 048C17D2044 |
| Stu's / Vendor SKU | MB315 |
Specifications
| Horsepower | 1/3 HP |
|---|---|
| kW | 0.25 kW |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 V |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full-Load Amps | 5.8/3.1-2.9 A |
| Service Factor | 1.35 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 64 % |
| Enclosure | Drip Proof |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.500 in; Extension 1.97 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
