US Motors / Nidec

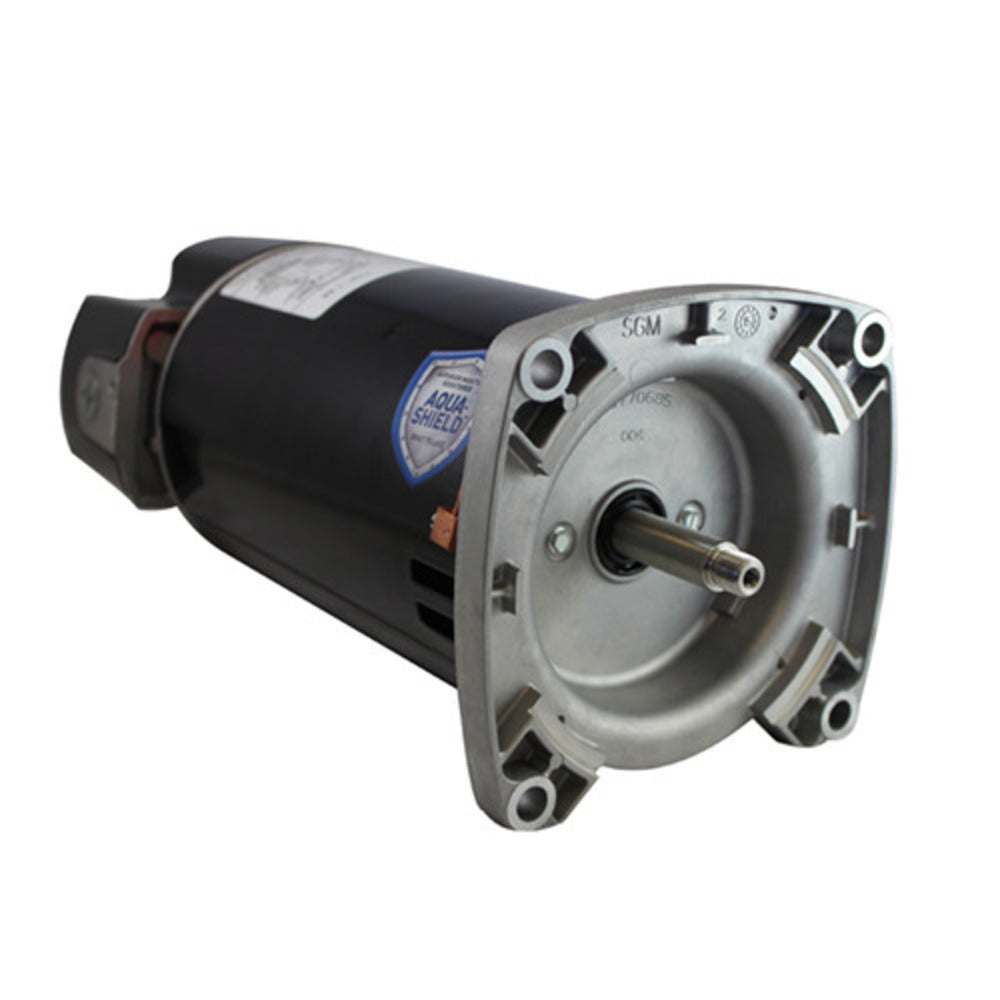

ASQ165 US Motors / Nidec Pool & Spa Motor - 1.65 HP - 3450 RPM - 230/115 V - ODP
ASQ165 US Motors / Nidec Pool & Spa Motor - 1.65 HP - 3450 RPM - 230/115 V - ODP
Regular price
$301.95 USD
Regular price
Sale price
$301.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
ASQ165 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for residential pool and spa pump service.
Specifications
| Horsepower | 1.65 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 230/115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 9.0/18.0 A |
| Service Factor | 1.1 |
| Overload Protection | Automatic reset |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 50 °C |
| Insulation Class | B |
| Efficiency | Not available from manufacturer |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 48Y |
| Enclosure | ODP |
| Mounting | Square flange |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | CW viewed from lead end |
| Bearings | DE 6203; ODE 6203 |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| Length | 13.05 in |
| Width | 16 in |
| Height | 12 in |
| Ship Weight | 25 lb |
| Country of Origin | MEX |
