US Motors / Nidec

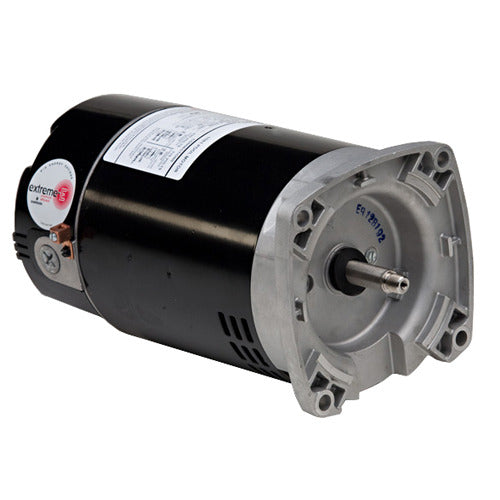

ASB841 US Motors / Nidec Pool & Spa Motor - 1.65 HP - 3450 RPM - 208-230/115 V - ODP

ASB841 US Motors / Nidec Pool & Spa Motor - 1.65 HP - 3450 RPM - 208-230/115 V - ODP

$338.95 USD
$338.95 USD
Sale Sold out
Shipping calculated at checkout.

ASB841 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for residential pool and spa pump service.

Specifications

Horsepower 1.65 HP
Nominal RPM 3600 RPM
Rated RPM 3450 RPM
Voltage 208-230/115 V
Phase Single Phase
Frequency 60 Hz
Electrical Type Permanent Split Capacitor
Full-Load Amps 7.6-7.2/14.4 A
Service Factor 1.65
Overload Protection Automatic reset
Duty Rating Continuous
Ambient Rating 50 °C
Insulation Class B
Hazardous Location Rating Not applicable
Speed Count 1
Frame 56Y
Enclosure ODP
Mounting Square flange
Shaft Configuration Y
Shaft Details 1/2-20 threaded stainless-steel shaft
Rotation CW viewed from lead end
Bearings Ball
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 13.7 in
Length 24 in
Width 13 in
Height 12 in
Ship Weight 24 lb
Country of Origin MEX
