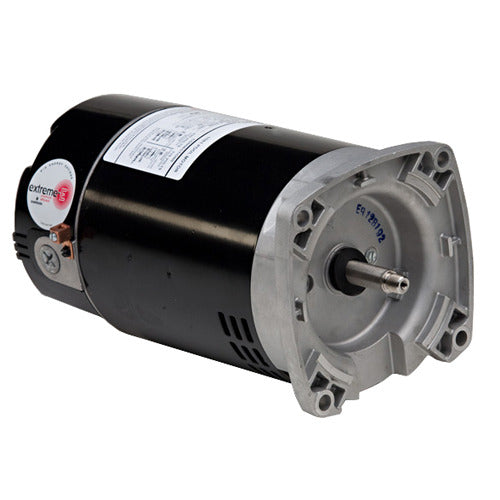

• ASB748 US Motors / Nidec Pool & Spa Motor - 2.6 HP - 3450 RPM - 230 V - ODP
1 1

US Motors / Nidec

ASB748 US Motors / Nidec Pool & Spa Motor - 2.6 HP - 3450 RPM - 230 V - ODP

ASB748 US Motors / Nidec Pool & Spa Motor - 2.6 HP - 3450 RPM - 230 V - ODP

$515.95 USD
$515.95 USD
Sale Sold out
Shipping calculated at checkout.

ASB748 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for pool and spa pumps.

Specifications

Horsepower 2.6 HP
Nominal RPM 3450 RPM
Rated RPM 3450 RPM
Voltage 230 V
Phase Single Phase
Frequency 60 Hz
Electrical Type Single Phase
Full-Load Amps 11.5 A
Service Factor 1.04
Overload Protection Thermally protected
Duty Rating Continuous duty
Ambient Rating 50 °C
Insulation Class B
Speed Count 1
Frame 56Y
Enclosure ODP
Mounting Square-flange pool-pump mount
Shaft Configuration Threaded stainless-steel pool-pump shaft
Rotation CWLE
Bearings Ball
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 13.74 in
Length 13.74 in
Ship Weight 30 lb
Country of Origin MEX
