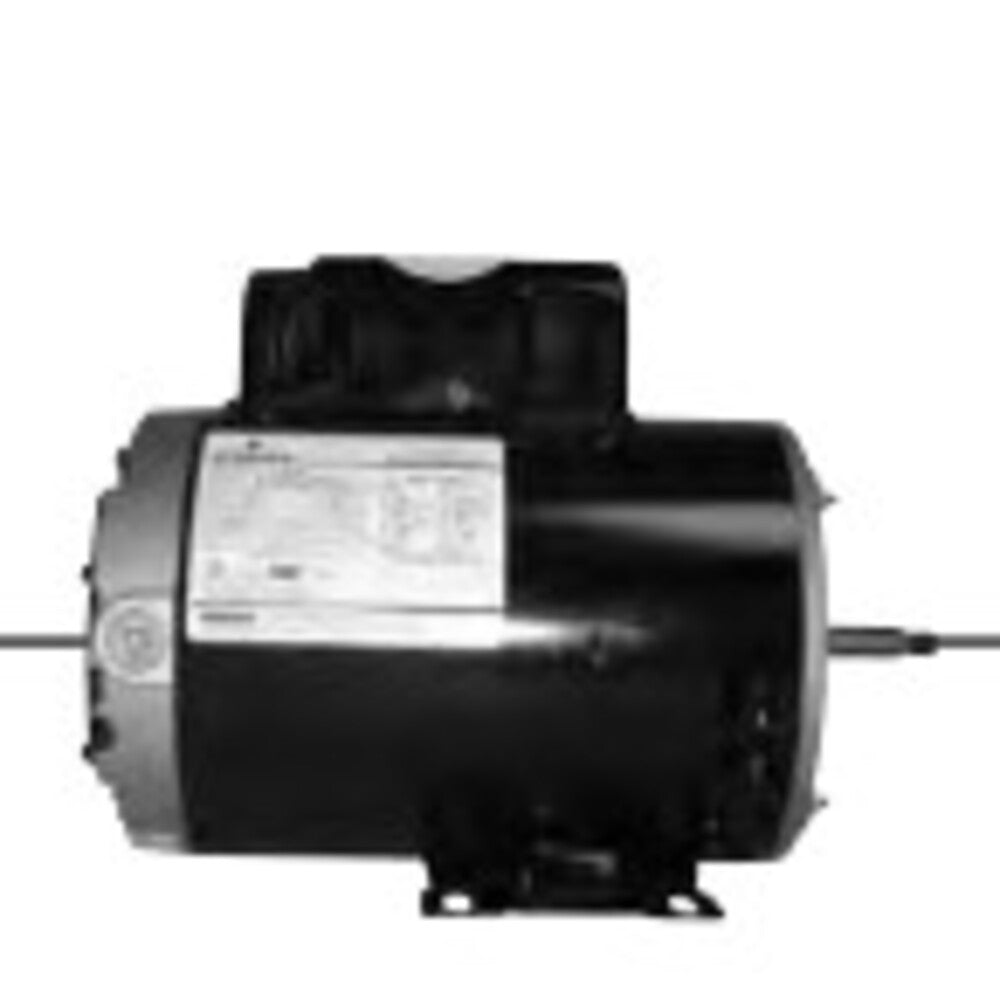

ASB505 US Motors / Nidec Pool & Spa Motor - 3 HP - 3450 RPM - 230 V - ODP
ASB505 US Motors / Nidec Pool & Spa Motor - 3 HP - 3450 RPM - 230 V - ODP
Regular price
$315.95 USD
Regular price
Sale price
$315.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
ASB505 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for pool and spa pumps.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 3450 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Single Phase |
| Full-Load Amps | 12.0/3.5 A |
| Service Factor | 1 |
| Overload Protection | Thermally protected |
| Duty Rating | Continuous duty |
| Ambient Rating | 60 °C |
| Insulation Class | F |
| Speed Count | 2 |
| Frame | 56Y |
| Enclosure | ODP |
| Mounting | Thru-bolt mount with rigid base |
| Shaft Configuration | Threaded pool pump shaft |
| Shaft Details | 3/8-16 UNC-2A shaft thread |
| Rotation | CWLE |
| Bearings | Sealed ball bearing |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 10.83 in |
| Length | 10.83 in |
| Ship Weight | 41 lb |
| Country of Origin | MEX |
