US Motors / Nidec

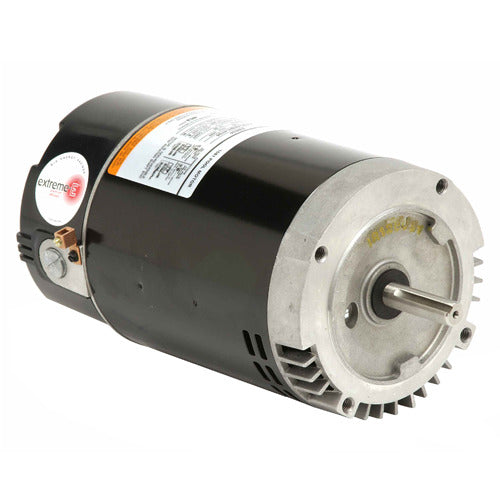

ASB127 US Motors / Nidec Pool & Spa Motor - 1.25 HP - 3450 RPM - 230/115 V - ODP
ASB127 US Motors / Nidec Pool & Spa Motor - 1.25 HP - 3450 RPM - 230/115 V - ODP
Regular price
$285.95 USD
Regular price
Sale price
$285.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
ASB127 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for residential pool and spa pump service.
Specifications
| Horsepower | 1.25 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 230/115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor |
| Full-Load Amps | 7.0/14.0 A |
| Service Factor | Not available from manufacturer |
| Overload Protection | Automatic reset |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 50 °C |
| Insulation Class | B |
| Efficiency | Not available from manufacturer |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56J |
| Enclosure | ODP |
| Mounting | C-face |
| Shaft Details | Manufacturer shaft code J |
| Rotation | CW viewed from lead end |
| Bearings | DE 6203; ODE 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Length | 10.76 in |
| Ship Weight | 23 lb |
| Country of Origin | MEX |
