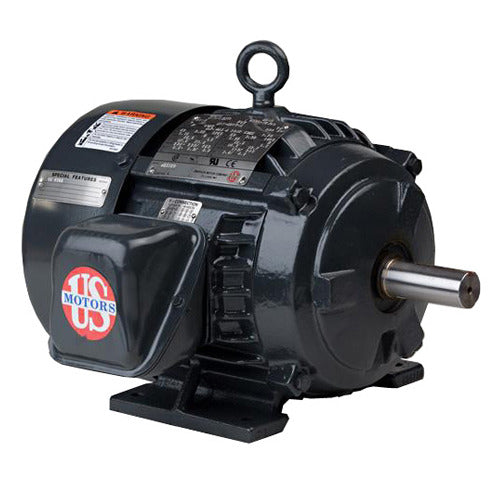

A7P2C US Motors / Nidec Automotive Duty Motor - 7 1/2 HP - 1780 RPM - 460 V - TEFC
A7P2C US Motors / Nidec Automotive Duty Motor - 7 1/2 HP - 1780 RPM - 460 V - TEFC
Regular price
$2,791.95 USD
Regular price
Sale price
$2,791.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
A7P2C is a new-in-box Automotive Duty Motor from US Motors / Nidec. Designed for automotive manufacturing and assembly applications.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1780 RPM |
| Voltage | 460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 9.1 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 91.7 % |
| Speed Count | 1 |
| Frame | 254U |
| Enclosure | TEFC |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code U |
| Rotation | Reversible |
| Bearings | 45BC03JPP3 / 45BC02JPP3 |
| Material | Cast Iron |
| Ship Weight | 300 lb |
| Country of Origin | MEX |
