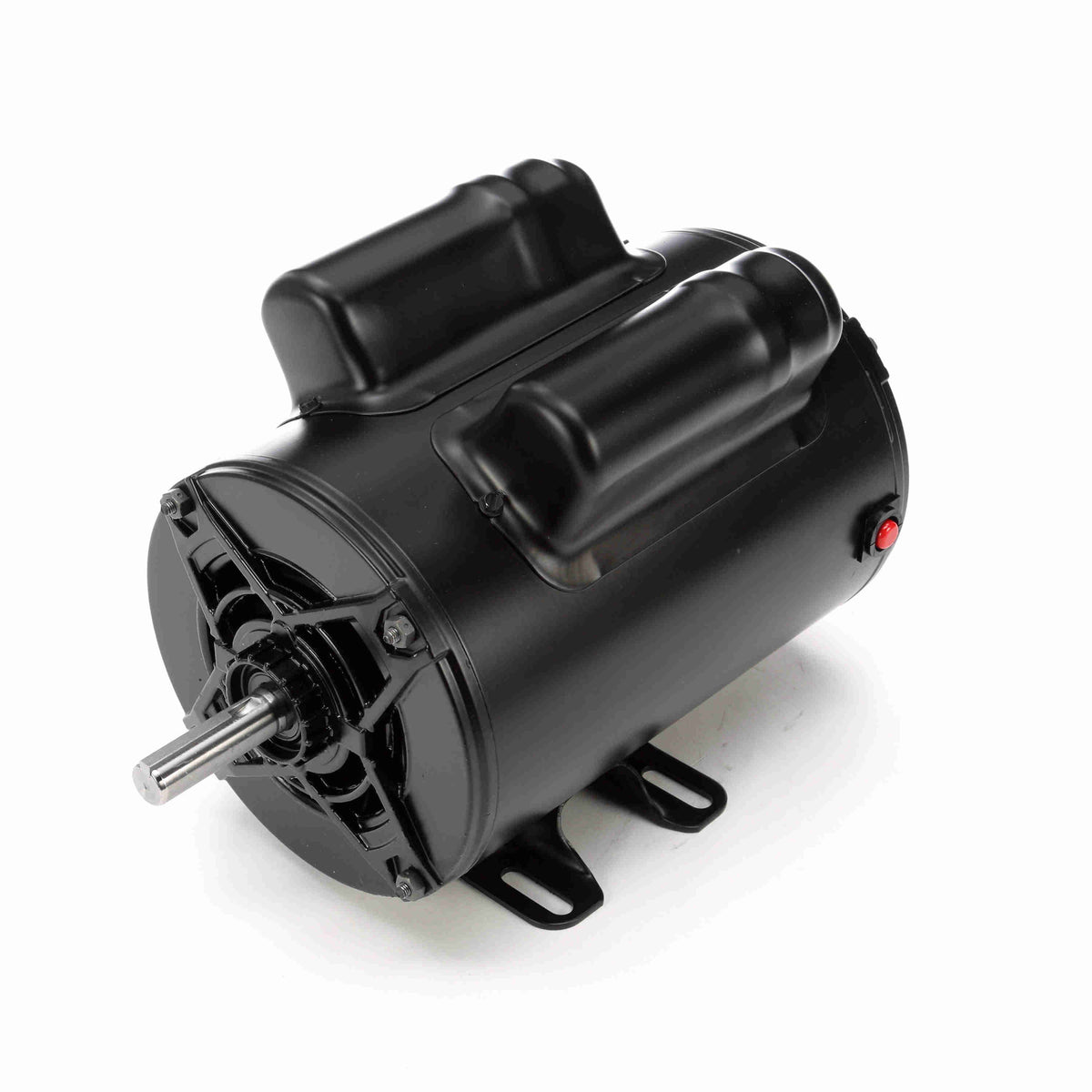

M9035 Marathon Air Compressor Motor, 2 HP, 3450 RPM, 115/230 V, Single Phase, 56 Frame, ODP
M9035 Marathon Air Compressor Motor, 2 HP, 3450 RPM, 115/230 V, Single Phase, 56 Frame, ODP
Regular price
$377.95 USD
Regular price
Sale price
$377.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
M9035 is a new-in-box Air Compressor Motor from Marathon. Manufacturer model 9035. Designed for Industrial motor.
Specifications
| Manufacturer Part Number | 9035 |
|---|---|
| Catalog / Order Number | M9035 |
| Product Type | Air Compressor Motor |
| Horsepower | 2 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full Load Amps | 15.0,7.5 A |
| Service Factor | 1 |
| Overload Protection | MAN |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Rigid Base |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in |
| Rotation | Clockwise/Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
