US Motors / Nidec

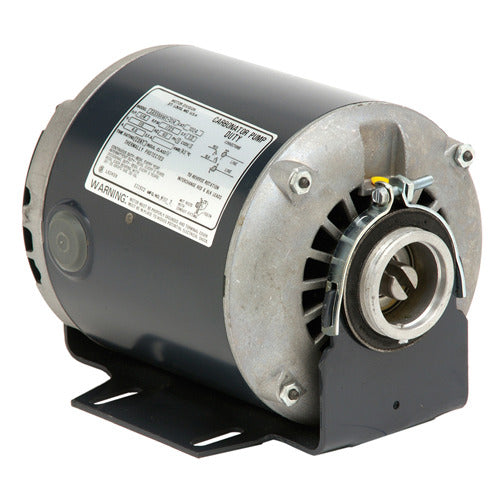

872 US Motors / Nidec Carbonator Pump Motor - 3/4 HP - 1800 RPM - 115/230 V - ODP
872 US Motors / Nidec Carbonator Pump Motor - 3/4 HP - 1800 RPM - 115/230 V - ODP
Regular price
$368.95 USD
Regular price
Sale price
$368.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
872 is a Carbonator Pump Motor from US Motors / Nidec.
Application: Carbonator pumps
Specifications
| Horsepower | 0.75 HP |
|---|---|
| Watts | 0.6 |
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | 10.0/4.9 A |
| Service Factor | 1 |
| Overload Protection | Automatic reset thermal overload protector |
| Duty Rating | Continuous duty |
| Speed Count | 1 |
| Frame | 48YZ |
| Enclosure | ODP |
| Mounting | Resilient base carbonator-pump mount |
| Shaft Configuration | Special short slotted carbonator-pump shaft |
| Rotation | Reversible |
| Bearings | Sleeve bearings |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| C Dimension | 9.7 in |
| Length | 9.7 in |
| Ship Weight | 25 lb |
| Country of Origin | MEX |
| HS Code | 8501.40.3040 |
New in box.
