8102 US Motors / Nidec Poultry Fan Motor - 1/2 HP - 850 RPM - 115/230 V - TEAO
8102 US Motors / Nidec Poultry Fan Motor - 1/2 HP - 850 RPM - 115/230 V - TEAO
Regular price
$264.95 USD
Regular price
Sale price
$264.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

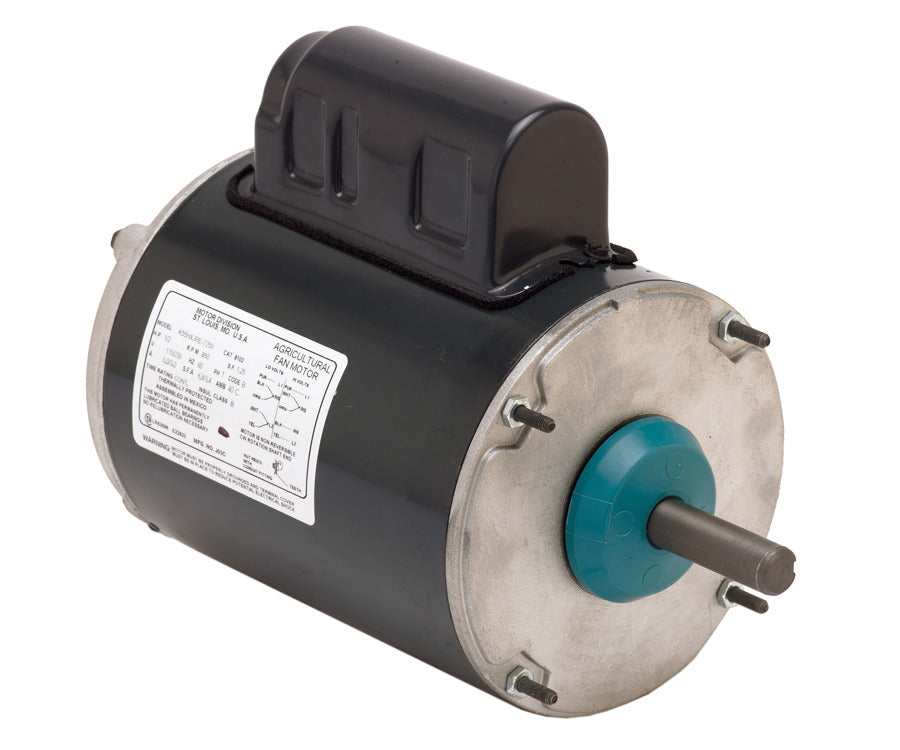

8102 is a new-in-box Poultry Fan Motor from US Motors / Nidec. Designed for direct-drive poultry and agricultural ventilation fans.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 900 RPM |
| Rated RPM | 850 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor |
| Full-Load Amps | 6.0/3.0 A |
| Service Factor | 1.25 |
| Overload Protection | Automatic reset |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 61.7 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 48YZ |
| Enclosure | TEAO |
| Mounting | Stud mount |
| Shaft Details | Manufacturer shaft code YZ |
| Rotation | CCW viewed from lead end |
| Bearings | Ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| Length | 16 in |
| Width | 15 in |
| Height | 10 in |
| Ship Weight | 22 lb |
| Country of Origin | MEX |
