US Motors / Nidec

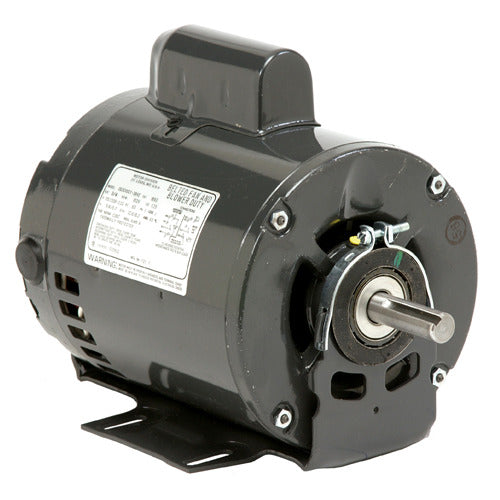

6316 US Motors / Nidec General Purpose Motor - 1 HP - 1725 RPM - 208-230 V - ODP
6316 US Motors / Nidec General Purpose Motor - 1 HP - 1725 RPM - 208-230 V - ODP
Regular price
$595.95 USD
Regular price
Sale price
$595.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
6316 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for air compressors, pumps, conveyors, blowers and general industrial equipment.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 7.4-7.4/4.0-4.3 A |
| Service Factor | 1.15 |
| Overload Protection | None |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 2 |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | CCW lead end; reversible |
| Bearings | BALL / BALL |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
