US Motors / Nidec

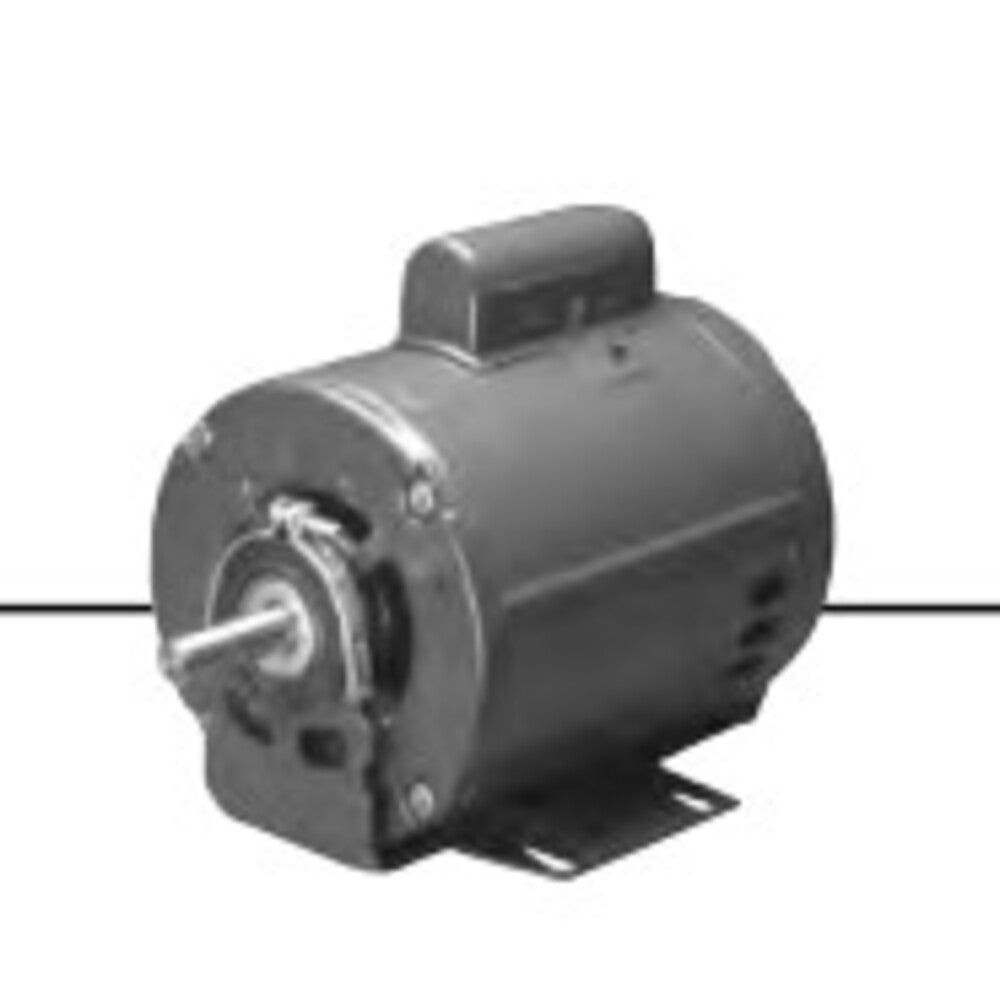

6309 US Motors / Nidec Fan & Blower Motor - 1/2 HP - 1725 RPM - 100-120/200-240 V - ODP
6309 US Motors / Nidec Fan & Blower Motor - 1/2 HP - 1725 RPM - 100-120/200-240 V - ODP
Regular price
$522.95 USD
Regular price
Sale price
$522.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
6309 is a new-in-box Fan & Blower Motor from US Motors / Nidec. Designed for belted fans and blowers.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1725 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 100-120/200-240 V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 6.3-5.6/3.1-2.8 A |
| Service Factor | 1.25 |
| Overload Protection | Automatic reset thermal overload protector |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Resilient base |
| Shaft Configuration | Single shaft |
| Shaft Details | N 1.9 in; diameter 0.625 in |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| C Dimension | 10.8 in |
| Length | 10.8 in |
| Ship Weight | 22 lb |
| Country of Origin | MEX |
