US Motors / Nidec

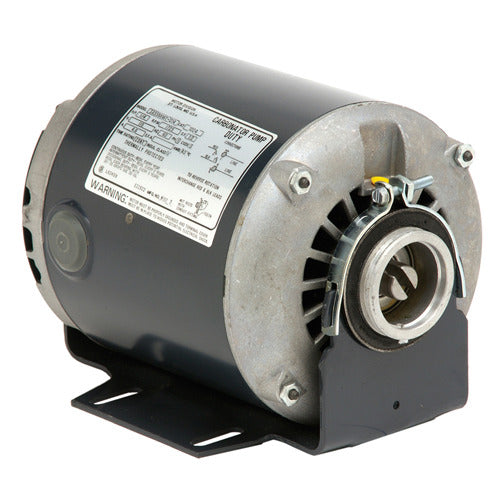

6078 US Motors / Nidec Carbonator Pump Motor - 1/2 HP - 1725 RPM - 120/240 V - ODP
6078 US Motors / Nidec Carbonator Pump Motor - 1/2 HP - 1725 RPM - 120/240 V - ODP
Regular price
$315.95 USD
Regular price
Sale price
$315.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
6078 is a new-in-box Carbonator Pump Motor from US Motors / Nidec. Designed for carbonator and beverage pump service.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 120/240 V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Split Phase |
| Full-Load Amps | 7.5/3.6 A |
| Service Factor | 1 |
| Overload Protection | Automatic reset |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | Not available from manufacturer |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 48 |
| Enclosure | ODP |
| Mounting | Resilient mount |
| Shaft Configuration | Y |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | CW viewed from drive end; reversible |
| Bearings | Ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| Ship Weight | 17 lb |
| Country of Origin | MEX |
